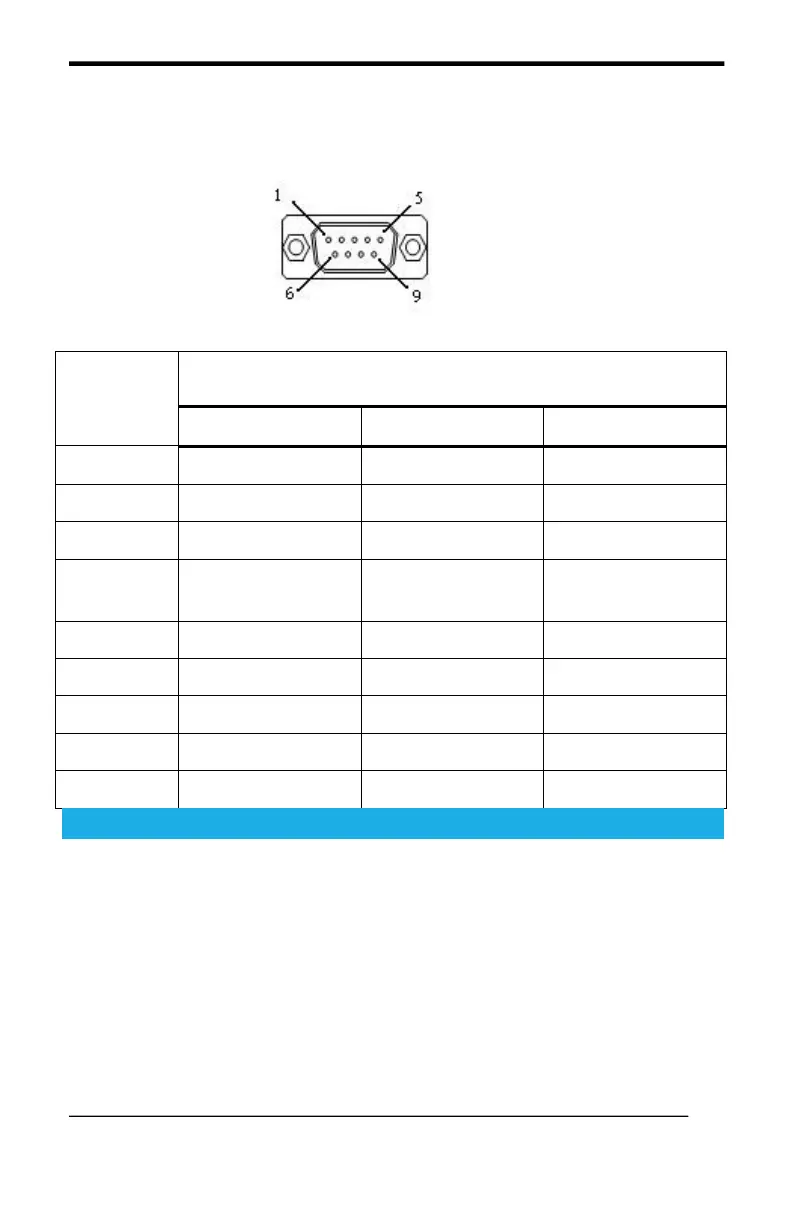

APPENDIX
30
A228/A248/A228I/A24
8I User’s manual
COM1 & COM2 Connector
Pin #
Signal Description
RS
-
232
RS
-
422
RS
-
485
1
Carrier Detect
Transmit Data
-
Transmit Data
-
2
Receive Data
Transmit Data +
Transmit Data +
3
Transmit Data
Receive Data +
NC
4
Data Terminal
Ready
Receive Data -
NC
5
Ground
NC
NC
6
Data Set Ready
NC
NC
7
Request to Send
NC
NC
8
Clear to Send
NC
NC
9
Ring Indicator
NC
NC
29
31
