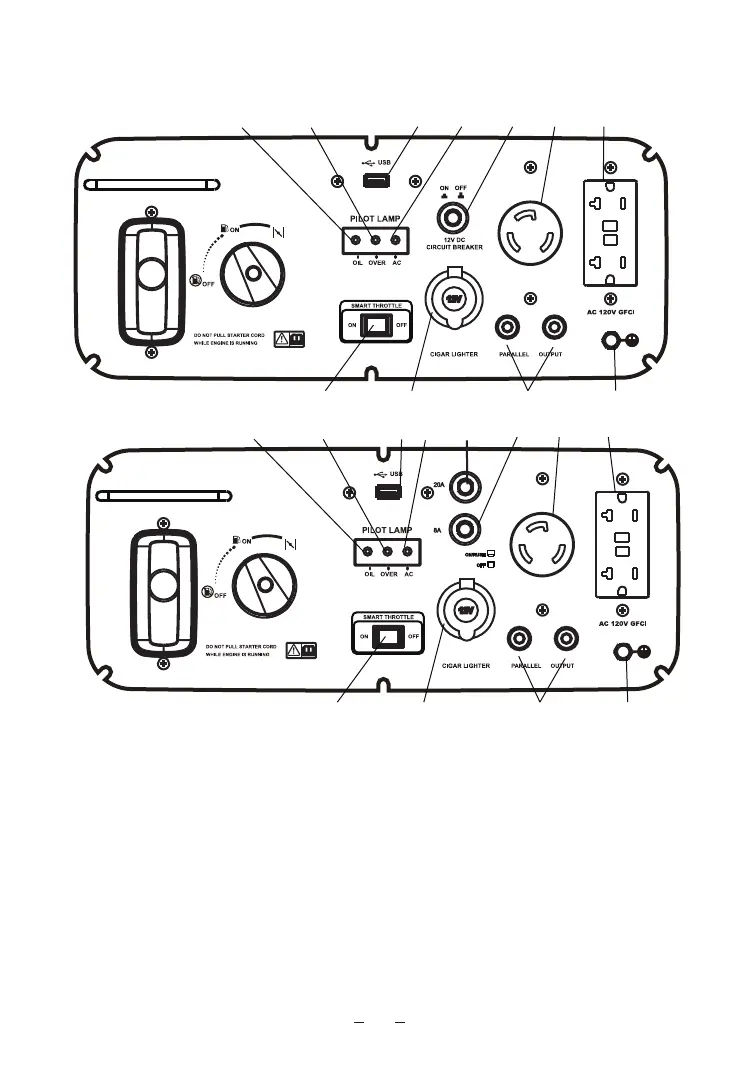

CONTROL PANEL

8 9 10 11

1 2 3 4 5 6 7

1.Low oil alarm indicator light

2.Overload indicator light

3.USB

4.Output indicator light

5.DC Circuit breaker

6.AC receptacle 1

7.AC receptacle 2

8.Smart Throttle

9.Cigar lighter

10.Parallel output

11.Ground terminal

13

8 9 10 11

1 2

3

4

5 6 7

12

12.AC Circuit Protector

FOR AY2500i

FOR AY3000i

20A

8A
