ATIMA AY3000i - Connection Notes

1
2
1
2

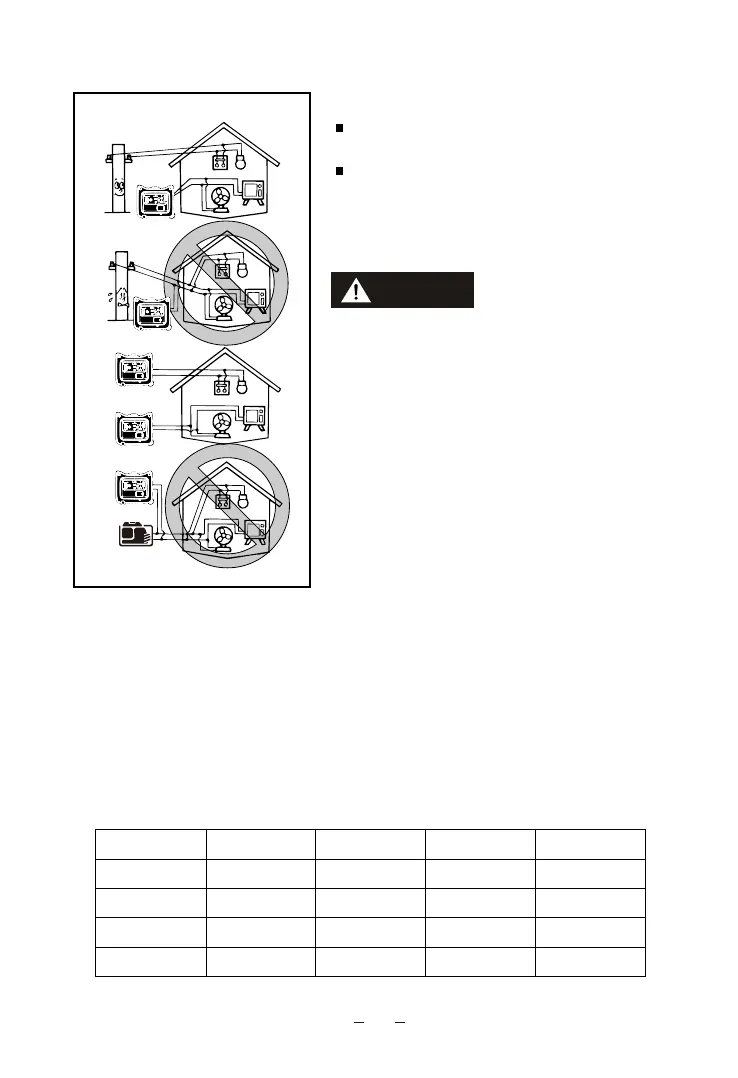

Avoid connecting the generator to commercial
power outlet.
1.Correct
2.Incorrect
Before the generator can be connected to a build-
ing’s electrical system, a licensed electrician must
install an isolation (transfer) switch in the build-
ing’s main fuse box. The switch is the connection
point for generator power and allows selection of
generator or main line power to the building. This
will prevent the generator from charging the main
power line (backfeeding) when the main power sup-
ply has failed or has been turned off for line repair.
Backfeeding can electrocute or injure line mainte-
nance personnel. Also, generator and building
electrical system damage can occur when normal
operating power returns if unit is used without an
isolation switch.
Extension cords should be protected by a tough
flexible rubber sheath (IEC 245) or the equivalent
to withstand mechanical stresses.
WARNING
Extension Cords
If an extension cord (not included) is used, make sure to use only UL approved cords
having the correct gauge and length according to the following table:
Nameplate Amps Cord Lengths
(@full load) 0’-50’ 50’-100’ 100’-150’ 150’-200’
0-5 16 16 12 12
5.1-8 16 14 10 -
8.1-12 14 12 - -
12.1-15 12 10 - -
15-20 10 10 - -
Do not try parallel with generators of any
other brand.
