- 12 -
►
Description

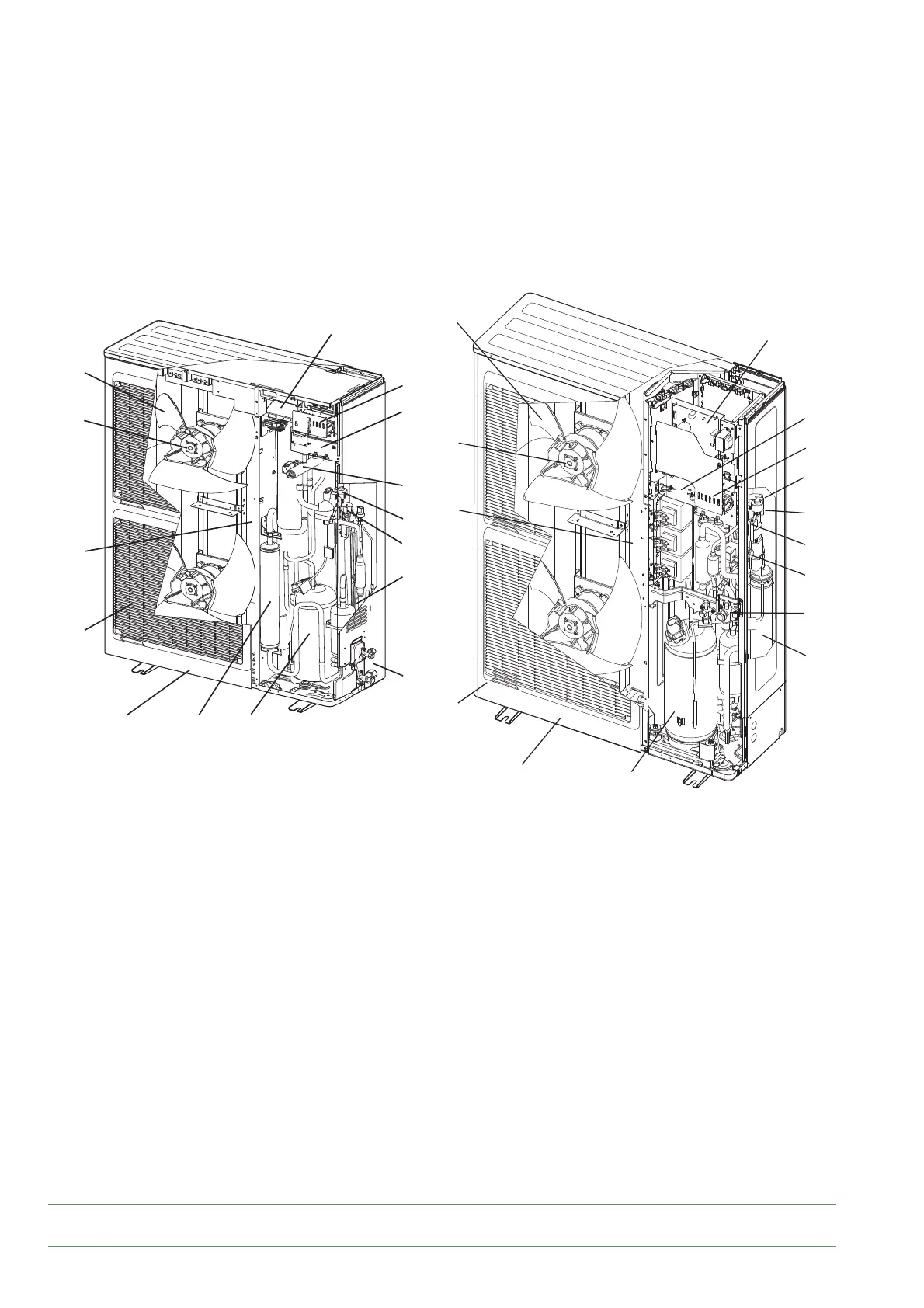

fi g. 8 - Outdoor unit components
Key:
1. High performance and low noise impeller.
2. Electrical motor with variable "inverter" operation.
3. "Inverter" control unit.
4. Check lights and buttons.
5. Connection terminal blocks
(power supply and interconnection).
6. Refrigerant storage bottle.
7. 4-way valve.
8. Anti-corrosion treated bodywork.
9. Main circuit electronic expansion valve.
10. Noise and thermally insulated "inverter" compressor with liquid injection port.
11. Refrigeration connection valves (fl ared connectors) with protective caps.
12. Holding tank with condensate drain hole.
13. High-performance exchange surface evaporator; anti-corrosion treated hydrophilic aluminium fi ns and
grooved copper tubes.
14. Solenoid valve for liquid injection.
15. Electronic expansion valve for liquid injection.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2
1
3
4
5
7
9
8
10
12
13
11
14
15
6
alfea excellia A.I. / Installation / 1876 - EN
■ Alféa Excellia A.I. 11 and 14
■ Alféa Excellia A.I. tri 11 , 14 and 16
