1.4 Descriptif

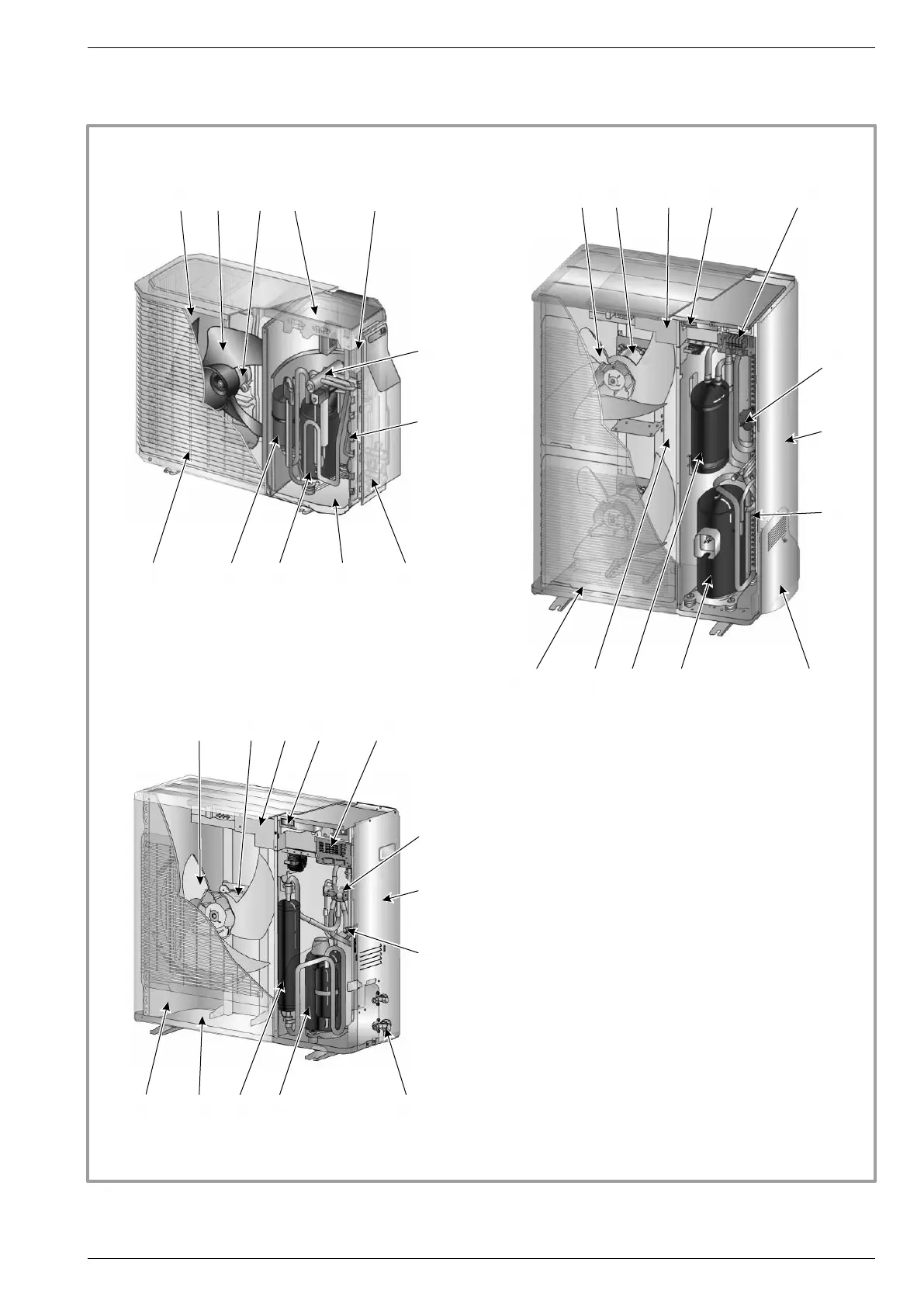

gure 7 - Outside unit components
Legend :
1 - Low-noise, high-output coil.
2 - Electric variable speed "inverter" motor.
3 - "Inverter" control module.
4 - Vacuum start (pump down) and control light.
5 - Connection terminal blocks
(power and interconnection).
6 - Refrigerant accumulator bottle.
7 - Cycle reversing valve.
8 - Anti-corrosion treated bodywork.
9 - Electronic expansion valve.
10 - Noise and temperature insulated "inverter"
compressor.
11 - Refrigeration connection valves (ared
connectors) with protective caps.
12 - Holding tank with condensate drain hole.
13 - High-performance exchange surface evaporator
; anti-corrosion treated hydrophilic aluminium ns
and grooved copper tubes.
13
1
2
12 1110
9
8
7
6
5
3
13
1
2
12 1110
9
8
7
6
5
4
3
13
1
2
12 1110
9
8
7
6
5
4
3
" Modèle extensa 8 & extensa 10
Installation and operating manual "1455 - EN" - 9 -
Heat pump alféa extensa
" Model extensa 5 & extensa 6 " Model extensa 13 & extensa 16
