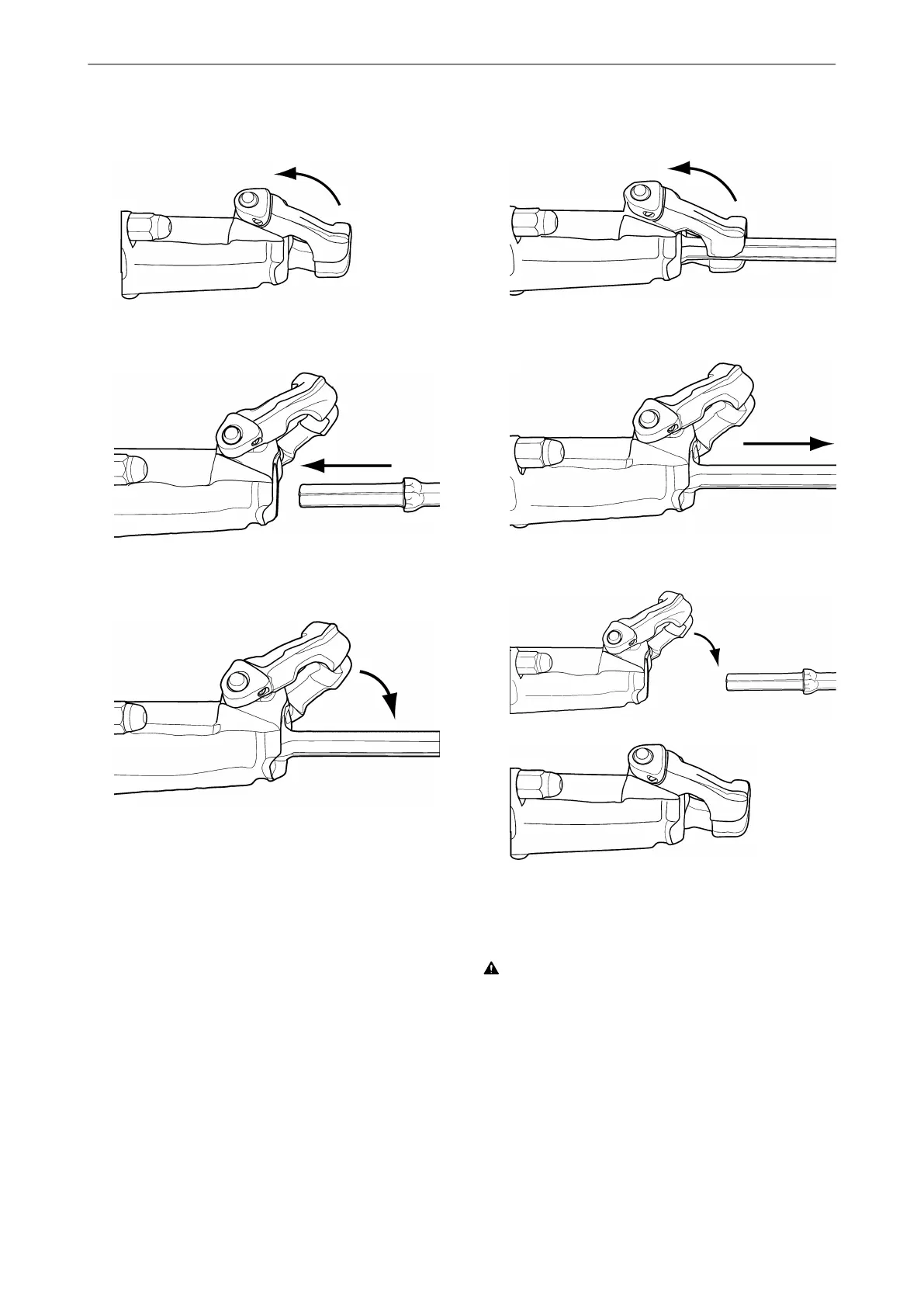

1. Push the retainer outwards in the direction of the
arrow, until the front portion of the retainer is able
to accommodate the drill steel collar.
2. Insert the drill steel in the chuck.
3. When the drill bottoms, push back the retainer
to lock it.
Removing the drill steel
Whenever removing the drill steel the following
instructions must be observed:
1. Push the retainer outwards in the direction of the
arrow until the drill steel collar disengages from
the front of the retainer.
2. Pull the drill steel out.
3. Push back the retainer.
Operation
WARNING Involuntary start
Involuntary start of the machine may cause injury.
► Keep your hands away from the start and stop
device until you are ready to start the machine.
► Learn how the machine is switched off in the event
of an emergency.
► Stop the machine immediately in all cases of
power supply interruption.
