4.2 Installation proposal

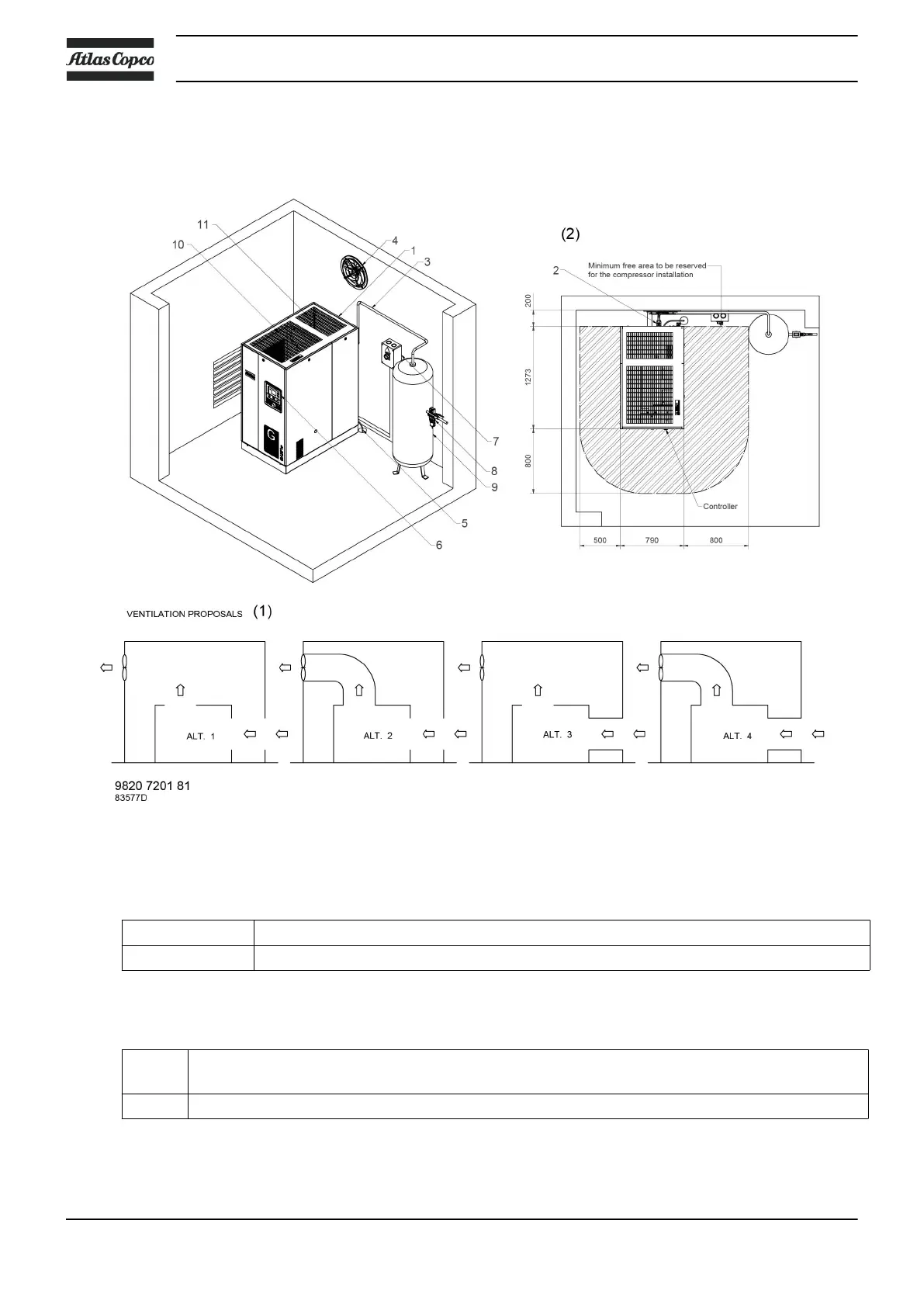

Compressor room example
Text on image
(1) Ventilation proposals
(2) Minimum free area to be reserved for the compressor installation
Description
1 Compressor unit:
Install the compressor unit on a solid, level floor suitable for taking the weight.
2 Position of the compressed air outlet valve.
