Electrical connections for GA 37 VSD+

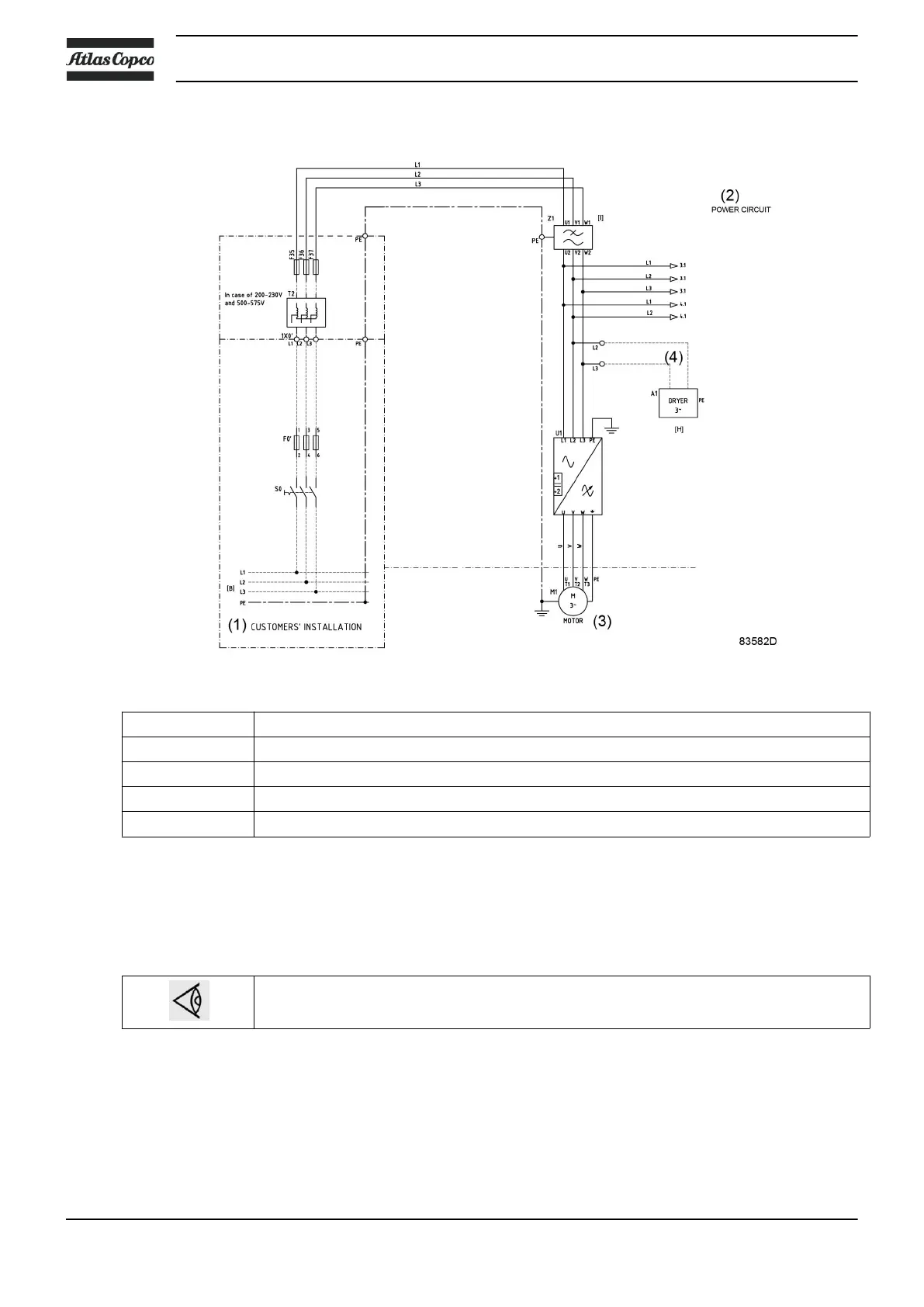

Electrical connections diagram, typical example
Reference Designation
(1) Customer’s installation
(2) Power circuit
(3) Motor
(4) Dryer
Note
The complete electrical diagram can be found in the electrical cubicle.
Description
You can find the correct position for the electrical connections in the section Dimension
drawings.
1. Provide an isolating switch.
2. Check that the motor cables and wires inside the electric cabinet are clamped tight to their
terminals.
3. Check the fuses. See section Electric cable size and fuses.
4. Connect the power supply cables to terminals EMC filter (Z1).
5. Connect the earth conductor to the earth bolt (PE).
Instruction book
60 2920 7110 05
