3.4 Main screen

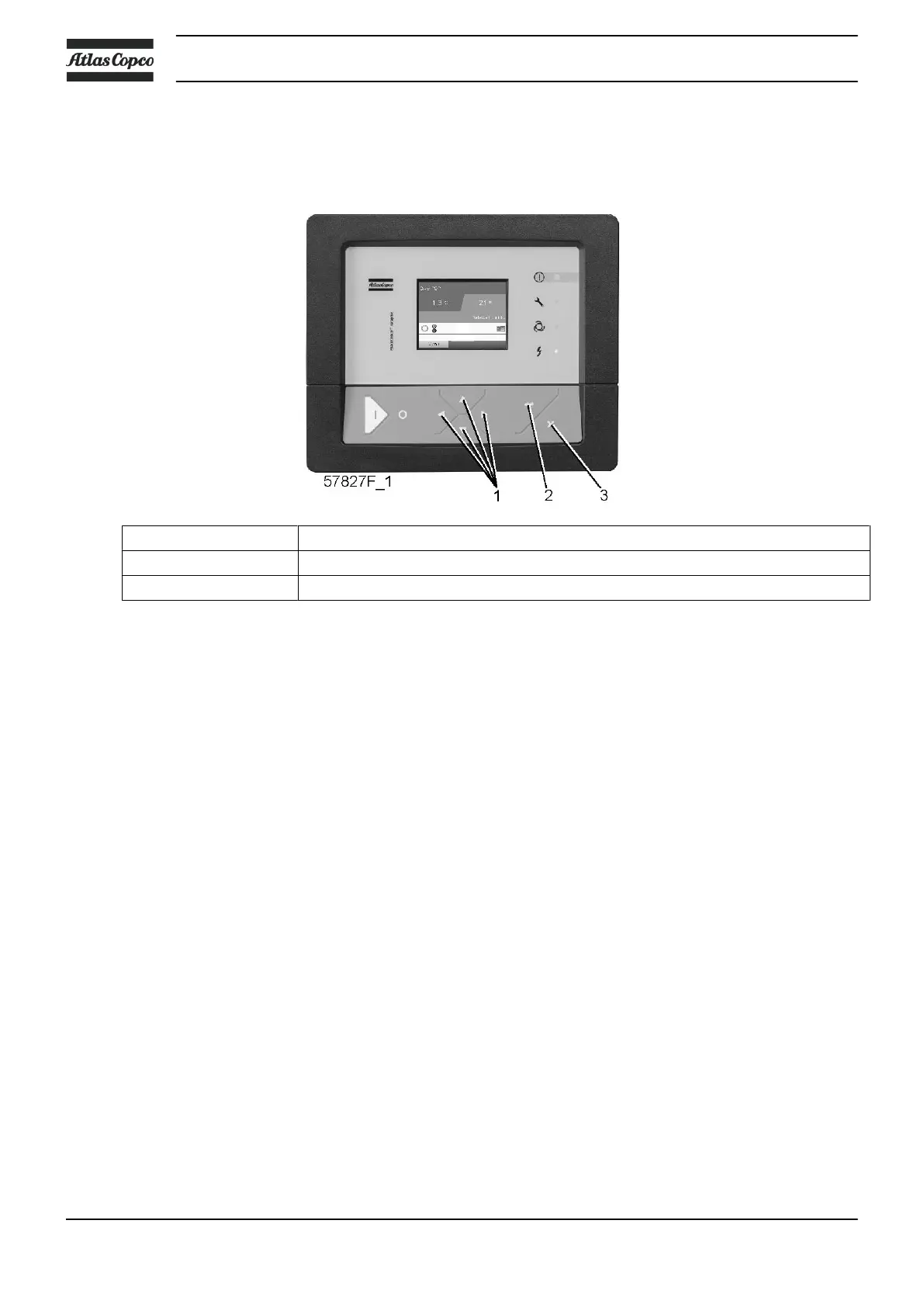

Control panel
(1) Scroll keys
(2) Enter key
(3) Escape key
Function
The Main screen is the screen that is shown automatically when the voltage is switched on and one of the
keys is pushed. It is switched off automatically after a few minutes when no keys are pushed.
Typically, 4 different main screen views can be chosen:
1. Two or four value lines
2. Chart (High resolution)
3. Chart (Medium resolution)
4. Chart (Low resolution)
Two or four value lines screens
This type of Main screen shows the value of 2 or 4 parameters (see section Inputs menu). By default, the 4
value lines screen is activated.
