• If an input is in warning or shutdown, the original icon is replaced by the warning or shutdown icon
respectively (i.c. the Stop icon and the Warning icon in the screen shown above).
A small chart icon, shown below an item in the list means this input signal is shown on the chart at the
main screen. Any analog input can be selected.
Selecting another input signal as main chart signal

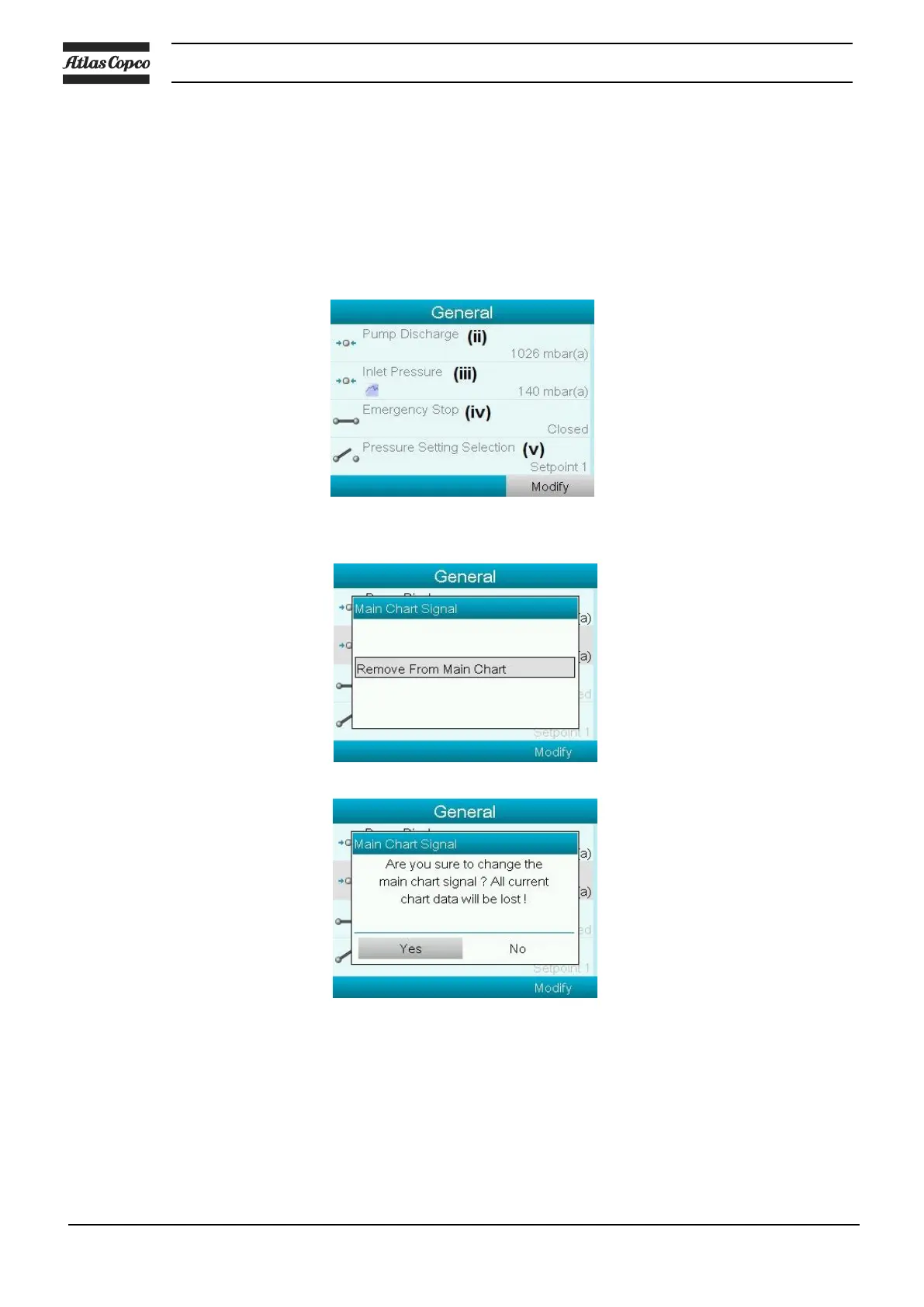

With the Modify button active (light grey background in above screen), press the Enter button on the
controller. A screen similar to the one below appears:
The first item in the list is highlighted. In this example, the inlet Pressure is selected (chart icon). To
change, press the Enter button again: a pop-up window opens:
Press Enter again to remove this input from the chart. Another confirmation pop-up opens:
Select Yes to remove or No to quit the current action.
In a similar way, another input signal can be highlighted and selected as Main Chart signal:
