12 2954 2100 01
QAS 14 - 20 Pd

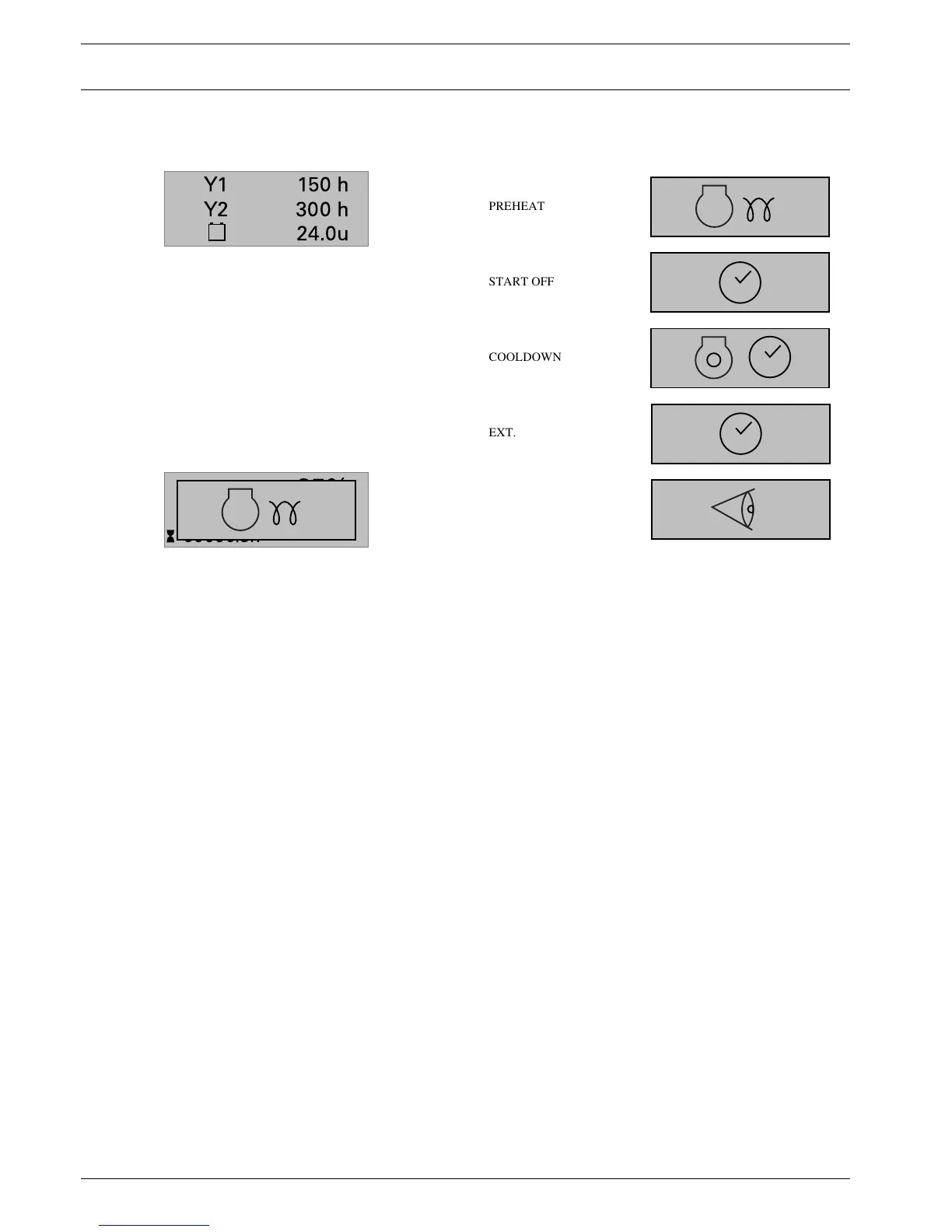

View 5 (Service Timers and Battery Voltage)
The service timer indications count upwards and give an alarm
when the configured value is reached.
Resetting of the Service Timers is possible through a display
Configuration Menu.
View 10 (reserved for normal English text)
In case that normal English text is selected i.s.o. icons, views 2 &
3 & 4 are changed into this three-row display format.
Status Display (pop-up window)
In case when special statuses are entered, a pop-up window will
automatically be entered for as long as the status is active.
The background screen is not updated when the status pop-up
window is active.
These special statuses are:
If a special status has elapsed, the default view will be entered again
automatically.
If a Warning comes up, the Warning Display is shown.
If a Shutdown comes up, the Shutdown Display is shown.
150 h
300 h
24.0u
Y1
Y2
85%
00000.8h
PREHEAT
START OFF
COOLDOWN
EXT. STOP TIME
DIAGNOSTIC
