QAS28 Yd(S), QAS28 YdS IT
10
%
2'<:25.

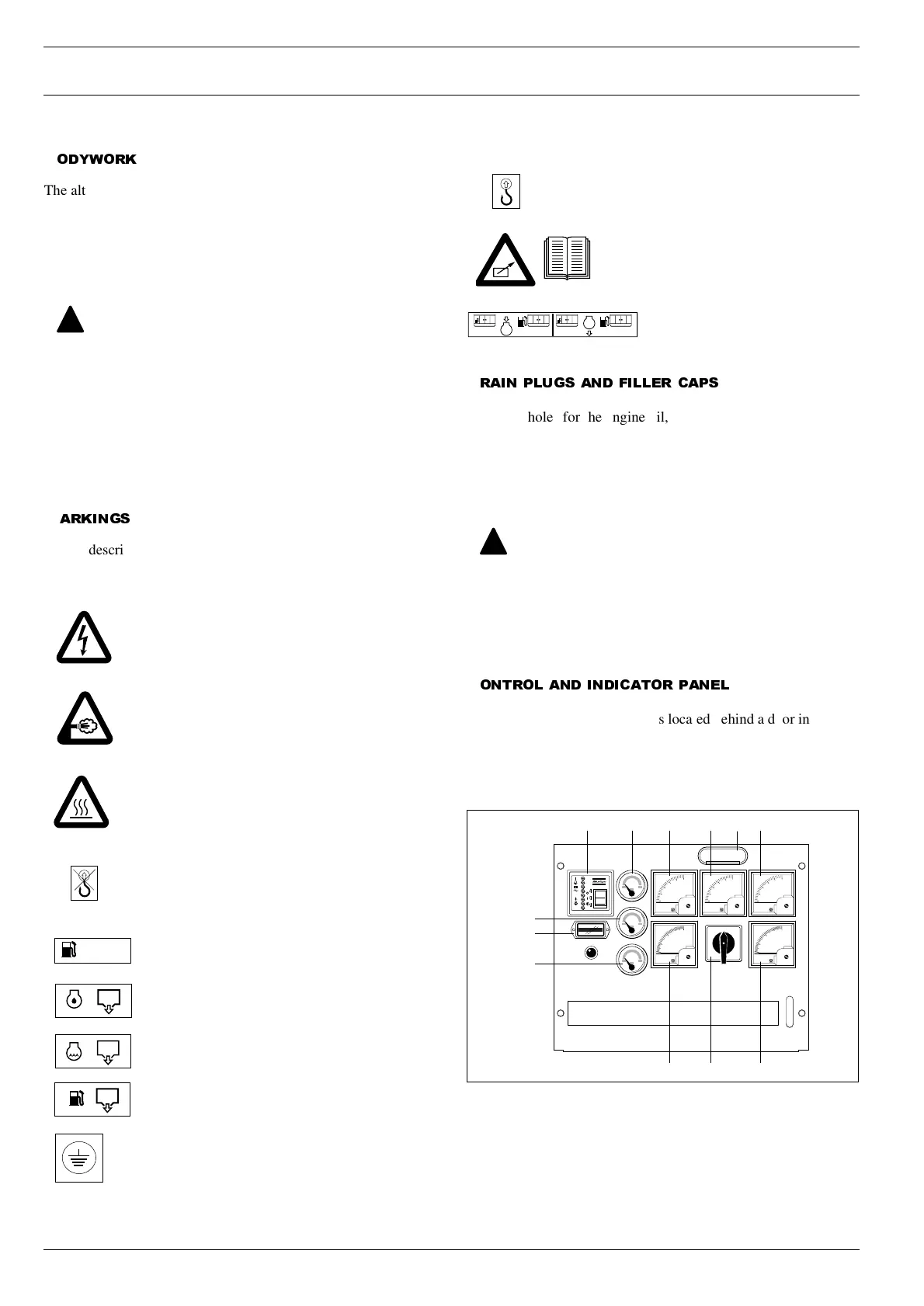

The alternator, the engine, the cooling system, etc. are enclosed in
a sound-insulated bodywork that can be opened by means of side
doors (and service plates).
The recess in the roof has a lifting rod in the middle and a guiding
rod at both sides.
To be able to lift the QAS28 by means of a forklift, rectangular
holes are provided in the frame.
QAS28 Yd(S)
The earthing rod, connected to the generator’s earth terminal is lo-
cated at the side of the frame.
0
$5.,1*6
A brief description of all markings provided on the QAS28 is given
hereafter.
'
5$,1
3/8*6
$1'
),//(5
&$36
The drain holes for the engine oil, the coolant and the plug for the
fuel, are located and labelled on the frame; the fuel drain plug at the
front, the others at the service side.
The drain flexible for engine oil can be brought to the outside of the
generator through the drain hole.
The filler cap for the engine coolant is accessible via an opening in
the roof. The fuel filler cap is located in the side panel.
&
21752/
$1'
,1',&$725
3$1(/
The control and indicator panel is located behind a door in the side
panel. The hinged door is partly transparent and allows easy access
to the parts mounted behind it. Panel light H1 lights up as soon as
the starter switch is turned into position I, indicating that the fuel
solenoid is energized.
Never use the guiding rods to lift the generator.
Indicates that an electric voltage, dangerous to
life, is present. Never touch the electric terminals
during operation.
Indicates that the engine exhaust is a hot and
harmful gas, which is toxic in case of inhalation.
Always make sure that the unit is operated outside
or in a well-ventilated room.
Indicates that these parts can become very hot
during operation (eg. engine, cooler, etc.). Al-
ways make sure that these parts are cooled down
before touching them.
Indicates that the guiding rods may not be used to
lift the generator. Always use the lifting rod in the
roof of the generator to lift it.
Indicates that the generator may be refueled with
diesel fuel only.
Indicates the drain for the engine oil.
Indicates the drain for the coolant.
Indicates the drain plug for the engine fuel.
Indicates the different earthing connections on
the generator.
diesel
Indicates the lifting eye of the generator.
Indicates that the unit may start automati-
cally and that the instruction book has to be
consulted prior to use.
Indicates the 3-way valve.
The drain hole can also be used to guide external
fuel tank connections. When connecting an external
fueltank, use the 3-way valves. Refer to the option
“External fueltank connection”.
I
ME
0
200
100
500
300
400
V
I
ME
50
45
65
55
60
Hz
60/5A
I
ME
0
20
60
40
L3
A
60/5A
I
ME
0
20
60
40
L3
A
60/5A
I
ME
0
20
60
40
L3
A
Hz >
ST P8 P1 P2
S4P5 P4
P3H1
P6
P9
P7
000001 h
QUARTZ
HOUR
O
RORS
SO
TOTR
ST
