- 15 -
2 Main parts
2.1 General description
The QAX 12-20-24-30-35 is an AC generator, built for continuous running at sites where no electricity is available. The QAX 12 operates at 50 Hz and 230 V - 1 ph or
400 V - 3 ph. The QAX 20-30 operates at 50 Hz and 400 V - 3 ph. The QAX 24-35 operates at 60 Hz and 240 V - 3 ph. The QAX 12-20-24-30-35 generator is driven by

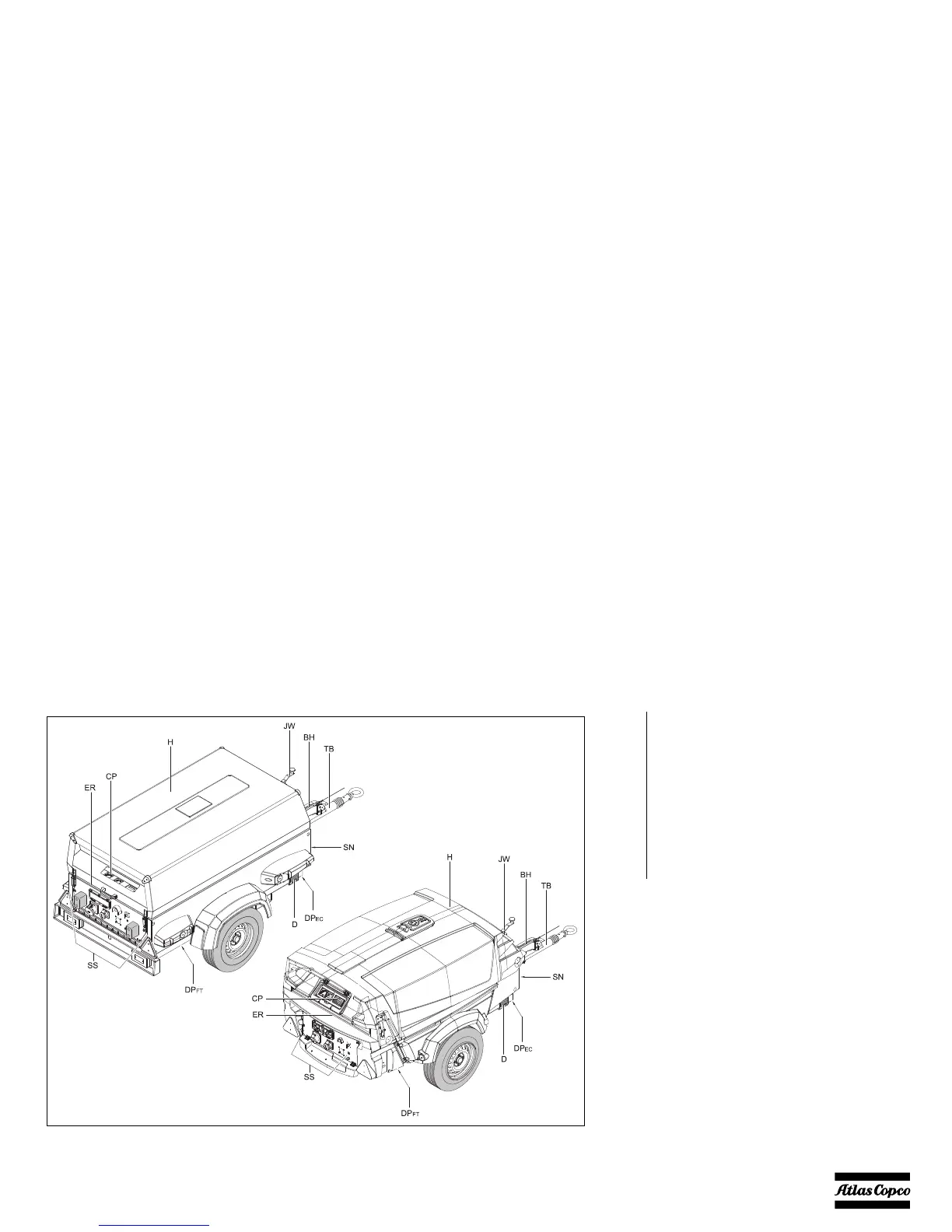

an oil-cooled diesel engine, manufactured by DEUTZ. An overview of the main parts is given in the diagram below.
BH Brake handle
CP Control panel
D Data plate
DP
EC
Drain plug engine oil cooler
DP
FT
Drain plug fuel tank
ER Earthing rod
H Hood
JW Jockey wheel
SN Serial number
SS Sockets and safeties
TB Towbar
