- 27 -

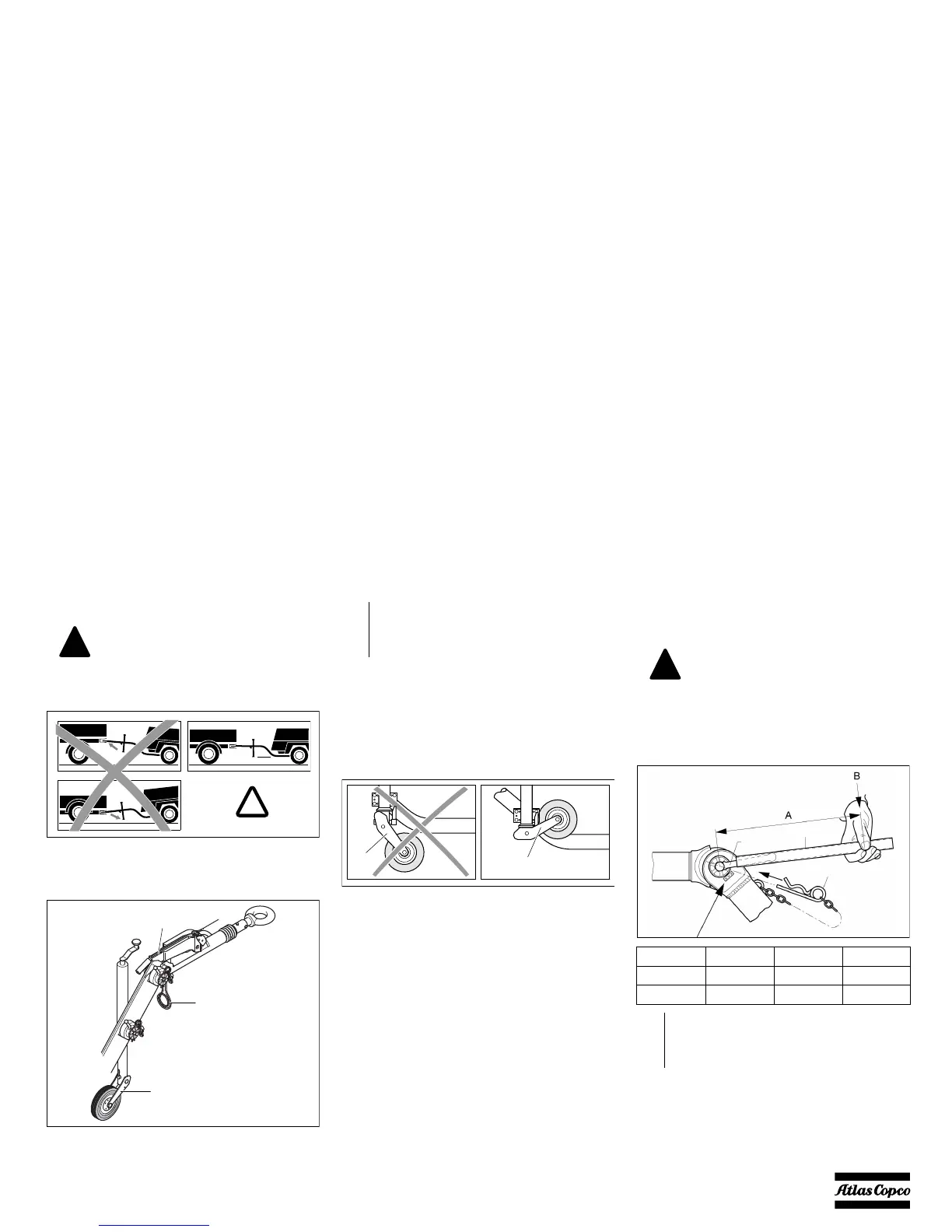

3.2.2 Towing
For both non-adjustable - and adjustable towbar, the
towbar should be as level as possible and the
generator and towing eye end in a level position.
Push the hand brake lever (1) completely downwards
and connect breakaway cable (2) to the vehicle.
Secure jockey wheel (3) or support leg in the highest
possible position. The jockey wheel is prevented from
turning (see “Parking instructions” on page 24).
3.2.2.1 Towing position of jockey wheel
3.2.2.2 Height adjustment (with adjustable
towbar)
Before towing the generator, ensure
that the towing equipment of the
vehicle matches the towing eye or ball
connector, and ensure that the hood is
closed and locked properly.
!
2
1
3
1 Hand brake lever
2 Breakaway cable
3 Jockey wheel
3
3
Before towing the generator, make
sure that the joints of the towbar are
secured with maximum strength
without damaging the towbar. Be
sure that there is no clearance
between the teeth of the joints.
For specific instruction see below!
X X X M
A
[Nm] A [mm] B [N]
ZV 2000 250-300 600 420-500
ZV 2500 350-400 600 580-660
1 Spring pin
2 Locking nut
3 Extension tube
!
1
2
3
XXX
