9.5.4 Lighting tower (only for Metal Canopy 50 Hz units)
9.5.4.1 General description
The lighting tower option provides an undercarriage (frame, axle and towbar) and 6 halogen projectors of 1500 W each. There are two versions of undercarriages available:
on-road (with road signalisation) and off-road (without road signalisation). The lighting tower is very useful for construction sites where no electricity nor lighting is
available.

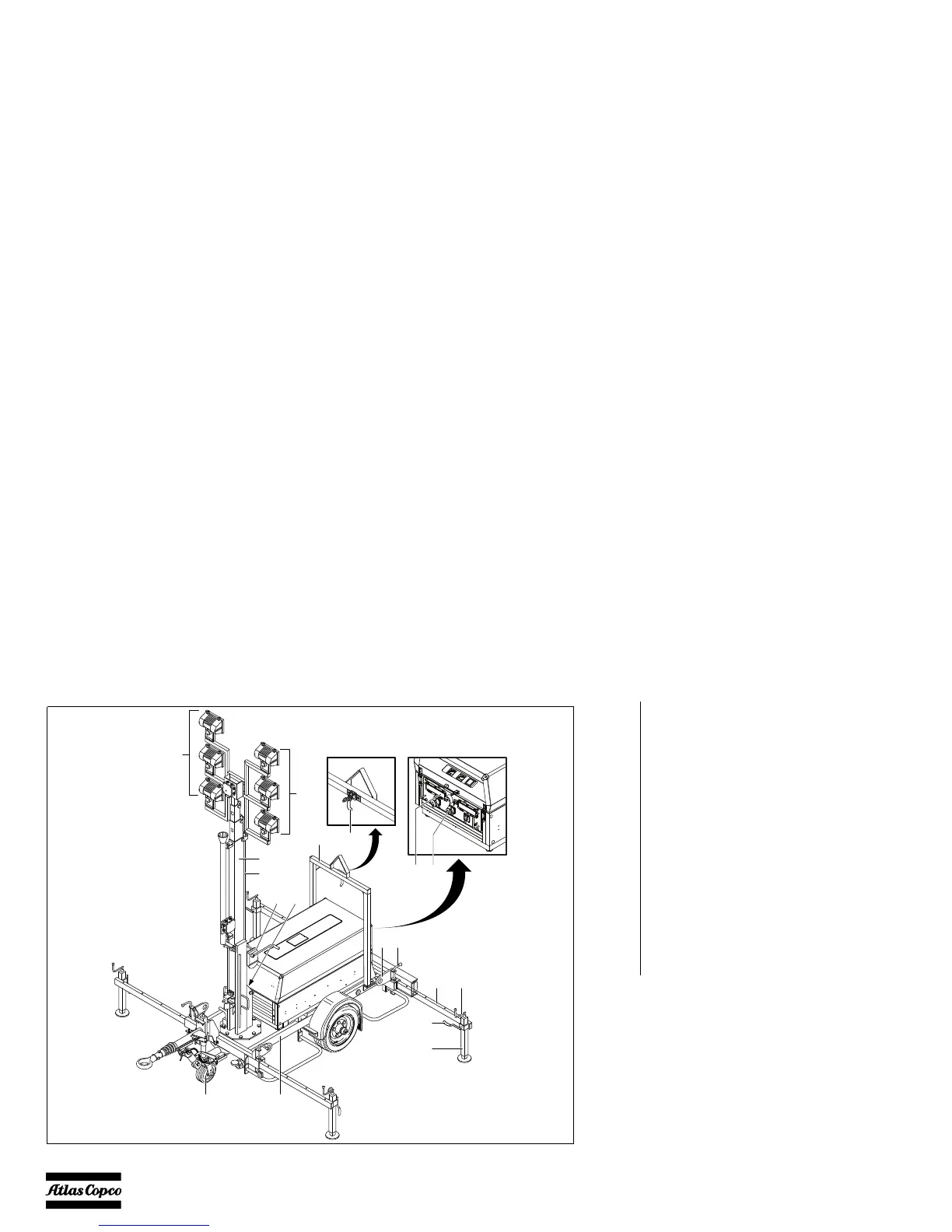

EC Elevation cable
FS Foot
HHF Handle to adjust the height of the foot
HLF Handle to lock/unlock the foot
HLS Handle to lock/unlock the stabilizer
HP Halogen projectors
JW Jockey wheel
LH Lifting hook
LP Locking pin
LTF Lever transport frame
MMast
PSC Power supply cable
Q1 Main circuit breaker
ST Stabilizer
TF Transport frame
U Undercarriage (on-road)
WM Winding mechanism
X2 Outlet socket
TF
HP
HP
LTF
X2Q1
EC
M
LPWM
UJW
HHFST
LH HLS
HLF
FS
