parameter sets A through H. Pressing ‘ESC’ at the SELECT
PARAMETER screen will return the program to the MORE
OPTIONS screen.
Once one of the eight parameters is selected by pressing one of
the associated numeric keys, that parameter will appear. Each
listing in the parameter set
will have a number associated
with it, a title, and then a
value. For instance the mini-
mum run timer in the exam-
ple to the left is listed as:
1. Timer Min = 0.121
Pressing the ‘1’ key will
allow the user to adjust Timer
Min’s value. Pressing any of the other number keys will allow
the user to adjust the value associated with that setting.

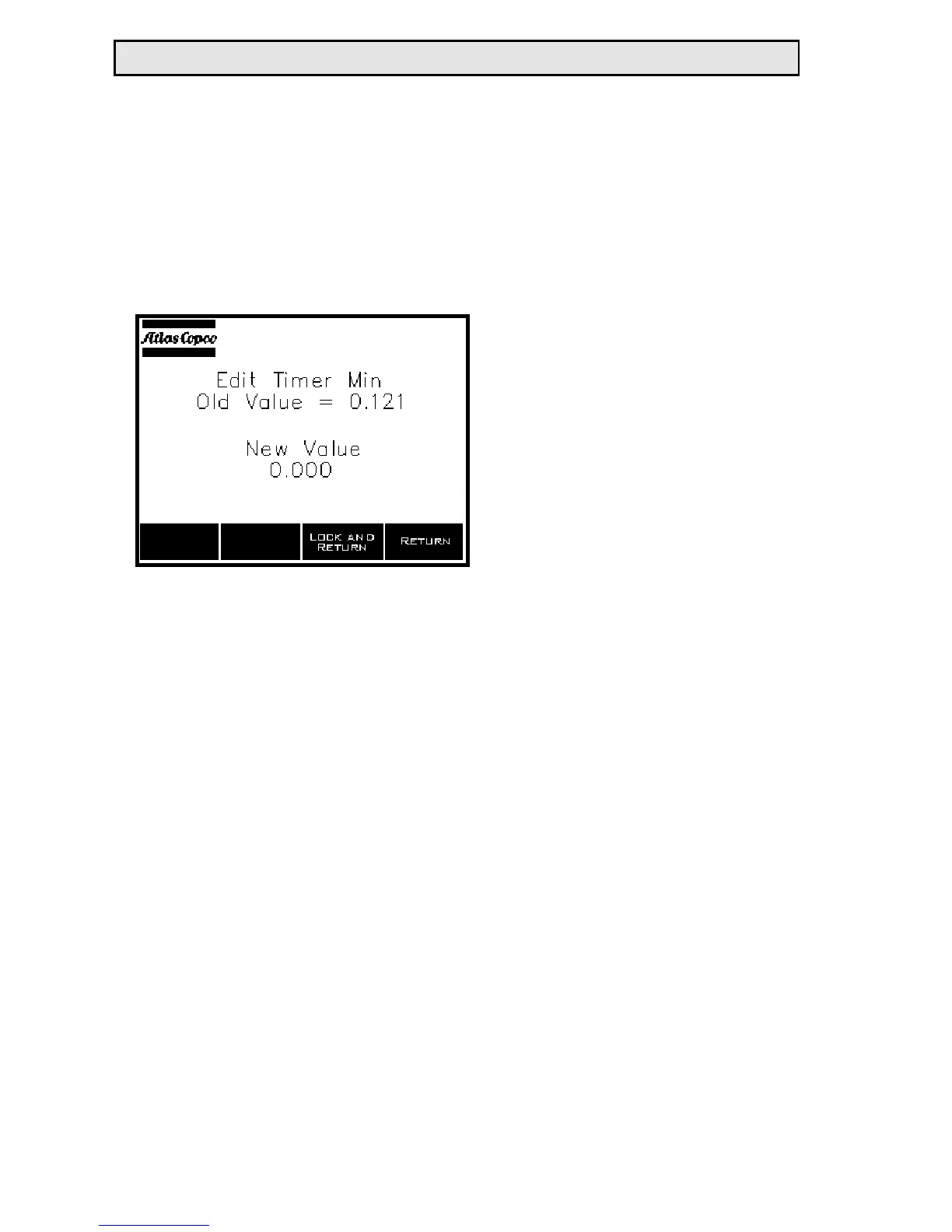

After an item from the parameter list is selected, another screen
will appear showing that items original value. On the screen will
also be a new value. A user can edit the new value by typing the
desired value on the keypad.
Once the new value is entered and is displayed on the screen,
pressing the ENT button will store that value into memory.
Conversely, the ESC button can be pressed to abort the editing
process.
When editing a parameter set it helps to know how each value
effects the operation of the RE Qualifier.
Timer Min defines the amount of time that the pneumatic signal
must be above the Run Start level but below the Clutch Level.
Timer Min is the minimum run-down time for a fastener.
13 RE Qualifier System Manual
