- 48 -
AIR FILTER ENGINE/COMPRESSOR
CLEANING THE DUST TRAP
Remove dust daily.
To remove dust from the dust trap pinch the vacuator
valve (6) several times.
RECOMMENDATIONS
New elements must also be inspected for tears or
punctures before installation.
Discard the element (4) when damaged.
In heavy duty applications it is recommended to
install a safety cartridge which can be ordered with
part no.: 2914 9311 00
A dirty safety cartridge (3) is an indication of a mal-
functioning air filter element. Replace the element
and the safety cartridge in this case.
The safety cartridge cannot be cleaned.
REPLACING THE AIR FILTER ELEMENT
1. Release the snap clips (1) and remove the dust trap
(2). Clean the trap.
2. Remove the element (4) and the safety cartridge.
3. Reassemble in reverse order of dismantling. Make
sure the vacuator valve (6) points down.
4. Inspect and tighten all air intake connections.
5. Reset the vacuum indicator by pressing the reset
button (5).
AIR RECEIVER
The air receiver (1) is tested according to official
standards. Regularly have inspections carried out in
conformity with local regulations.
SAFETY VALVE
Following checks must be carried out on the safety
valve (2):
 a check of the opening of the lifting gear, twice a
year. This can be done by screwing the cap of the
valve anti-clockwise.
 a check of the set pressure once a year according
to the local regulations. This check cannot be done
on the machine and must be carried out on a
proper test bench.

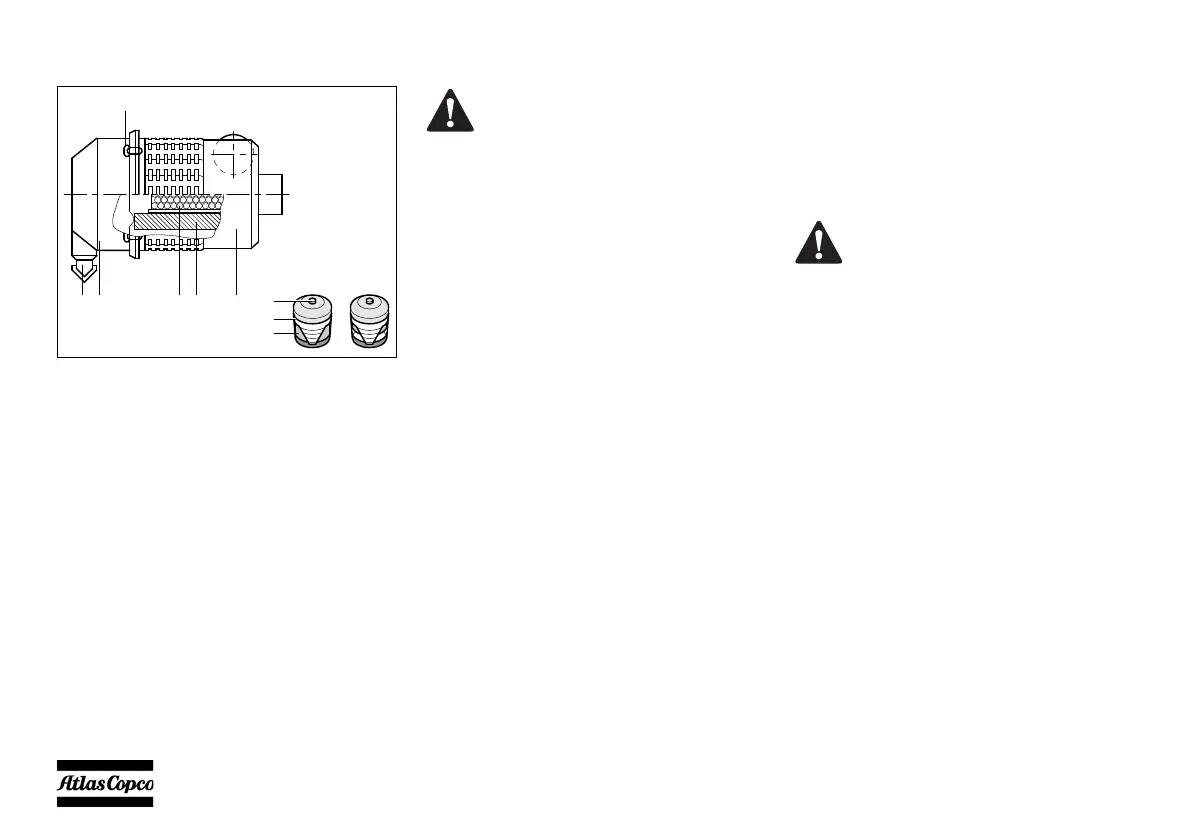

1. Snap clips 6. Vacuator valve
2. Dust trap cover 7. Vacuum indicator
3. Safety cartridge
(option)
8. Reset button
4. Filter element 9. Yellow indicator
5. Filter housing
(1)
(6)(2) (3)(4) (5)
(7)
(9)
(8)
The Atlas Copco air filters are specially
designed for the application. The use of
non-genuine air filters may lead to
severe damage of engine and/or
compressor element.
Never run the compressor without air
filter element.
All adjustments or repairs are to be done
by an authorized representative of the
valve supplier.
