- 25 -

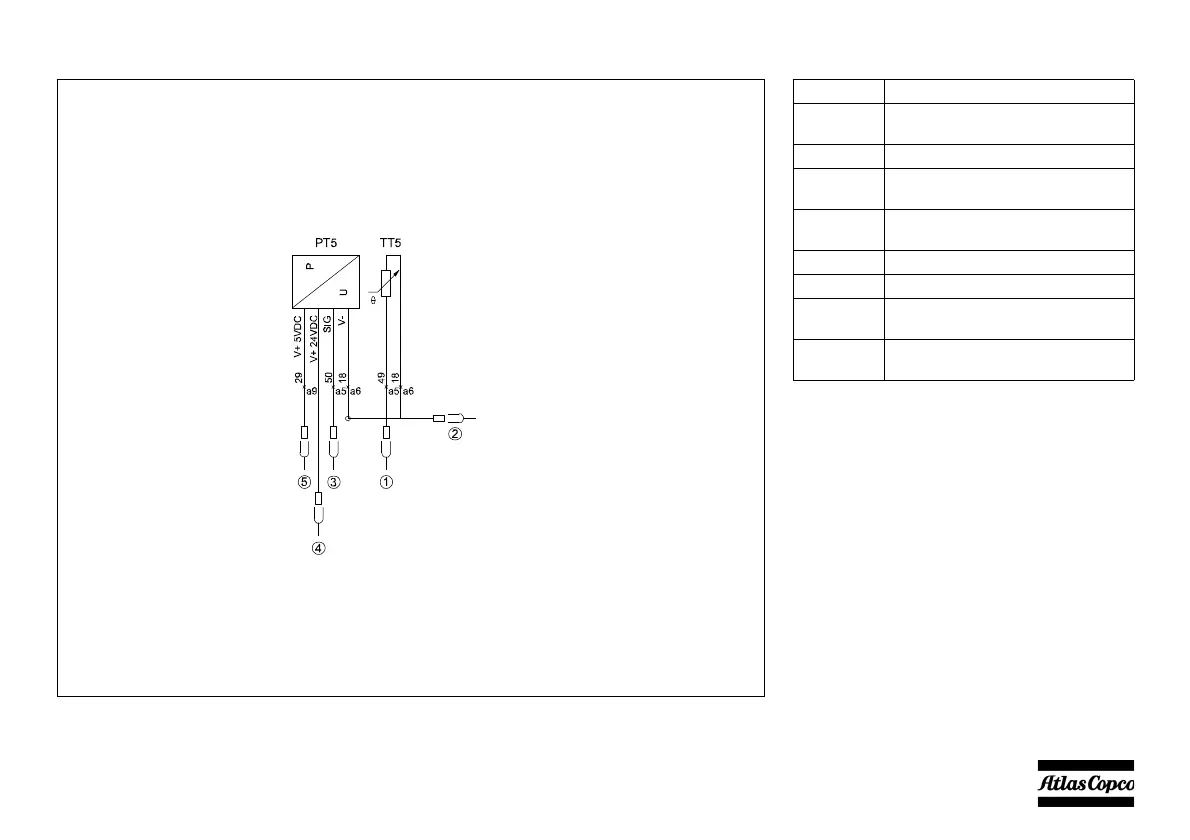

Air discharge sensors
14
Reference Name
1 Connect to temperature input in
cubicle default: T-IN 01
2 Connect to 18 in cubicle
3 Connect to voltage input in cubicle
default: V-IN 04
4 connect to 24VDC in power supply
box
5 Connect to 29 in cubicle
TT5 Temperature sensor, PT1000, Air
discharge temperature
PT5 Pressure sensor, Air discharge
pressure
