- 97 -

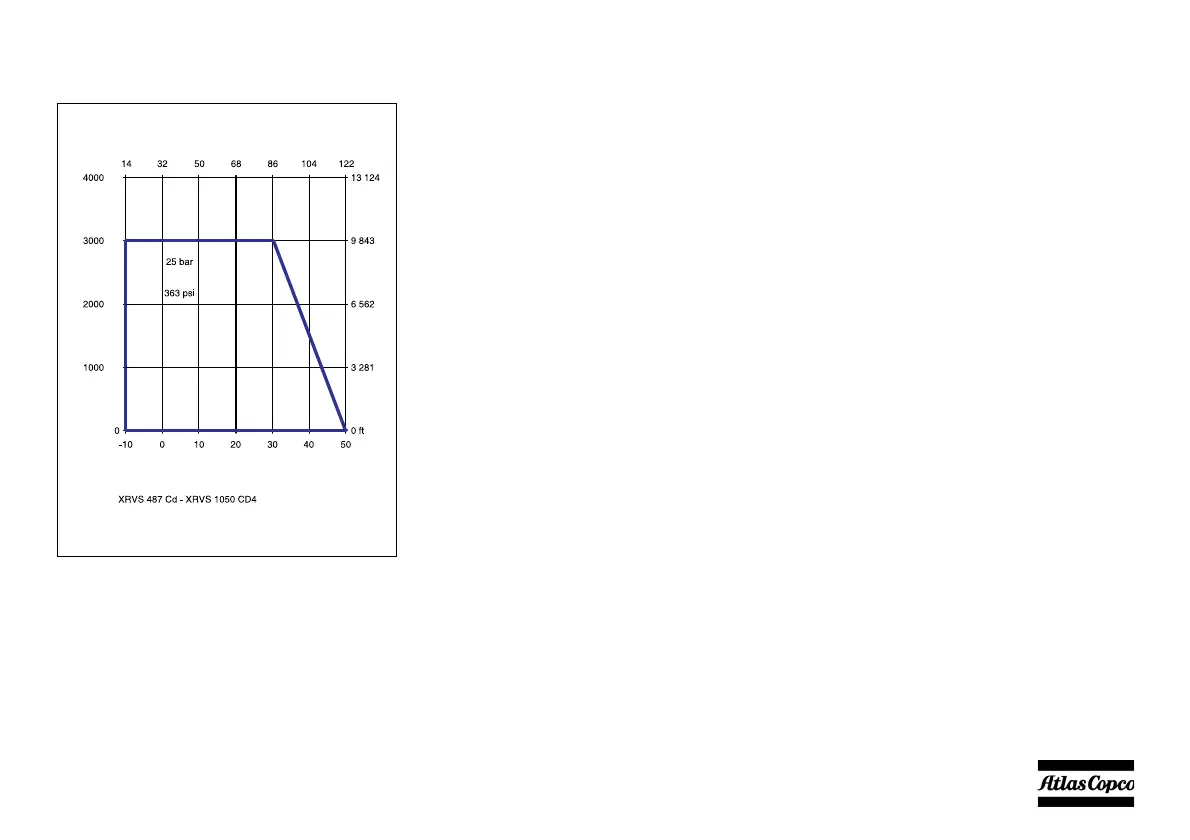

ALTITUDE UNIT PERFORMANCE CURVE
Max. allowable working pressure as a function altitude and ambient temperature.
ALTITUDE m
ALTITUDE ft
TEMPERATURE °F
TEMPERATURE °C
