Atlas Copco XRHS 527 Cd C3 WUX User Manual

- 83 -

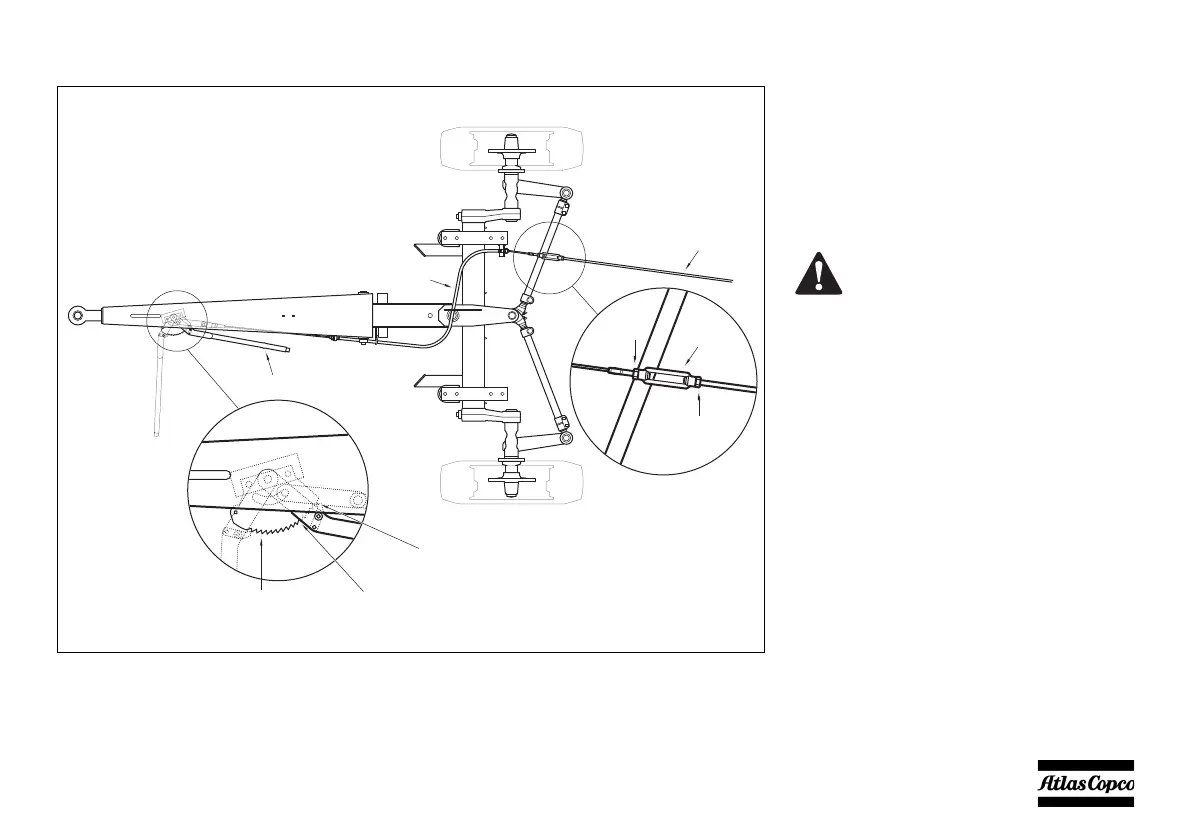

BRAKE ADJUSTMENT WAGON WITHOUT ABS
Adjusting the linkage
 The parking brake is adjusted by using the
turnbuckle (8). Adjust till the play in the linkage is
1-3 mm (max. 3 mm is allowed).
Apply the parking brake lever several times by
hand with a force of 200 to 300 N and put it back
into the -not engaged- tooth “1” position. Adjust
the turnbuckle (8) as described above.
Testing the parking brake
 For testing the parking brake, apply the parking
brake lever. Brake power must be reached
between the 6th and 14th tooth of the toothed
segment (“Z”).
(10)
"Z"
(9)
(7)
"Y"
"Y"
(11)
(11)
(8)
"Z"
"14"
"6"
"1"
Tighten all lock nuts (11)
(Torque: 24 Nm).
