Atlas Copco XRVS 1050 CD4 C3 WUX User Manual

- 40 -

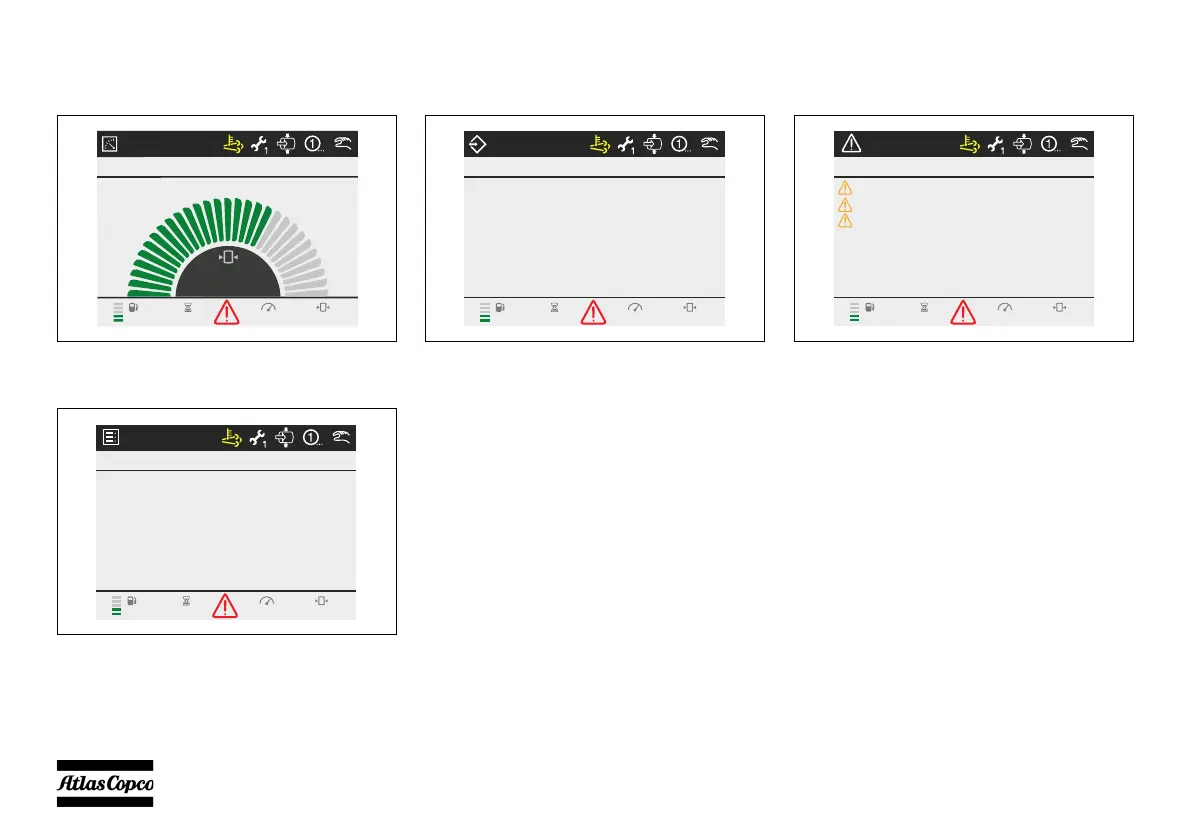

POSSIBLE VIEWS
Main View
Measuring View
Use the Up and Down navigation buttons to scroll
through the full list of measurements.
Setup View
Use the Up and Down navigation buttons to scroll
through the full list of settings.
Use the Enter button to enter the selected submenu.
Use the Back button to leave the entered (sub)menu.
Alarm View
Use the Up and Down navigation buttons to scroll
through the full list of alarms.
The DM Lists and the Log Lists can be selected and
entered to access the sublist.
MAIN VIEW
LOADED
1300RPM 22.4bar
41%
1286h
22.4
MEASUREMENTS
LOADED
1300RPM 22.4bar41% 1286h
Running Hours 1286h
ECU Engine rpm 1300 rpm
ECU Requested Speed 1300 rpm
ECU DPF Soot Load 24 %
Vessel Pressure 22.4 bar
HP Element Temperature 101˚C
Ambient Temperature 27˚C
SETTINGS
LOADED
1300RPM 22.4bar41% 1286h
1000 GENERAL SETTINGS
2000 DIGITAL INPUTS
3000 VOLTAGE INPUTS
4000 TEMPERATURE INPUTS
5000 RELAY OUTPUTS
5300 SEMICONDUCTOR OUTPUTS
6000 SYSTEM SETTINGS
ALARMS
LOADED
1300RPM 22.4bar41% 1286h
3450 BATTERY LOW ALARM
2070 COOLANT LEVEL LOW
3010 FUEL LEVEL LOW
ECU DM1 LIST
ECU DM2 LIST
EVENT LOG LIST
ALARM LOG LIST
