BRAKE ADJUSTMENTS

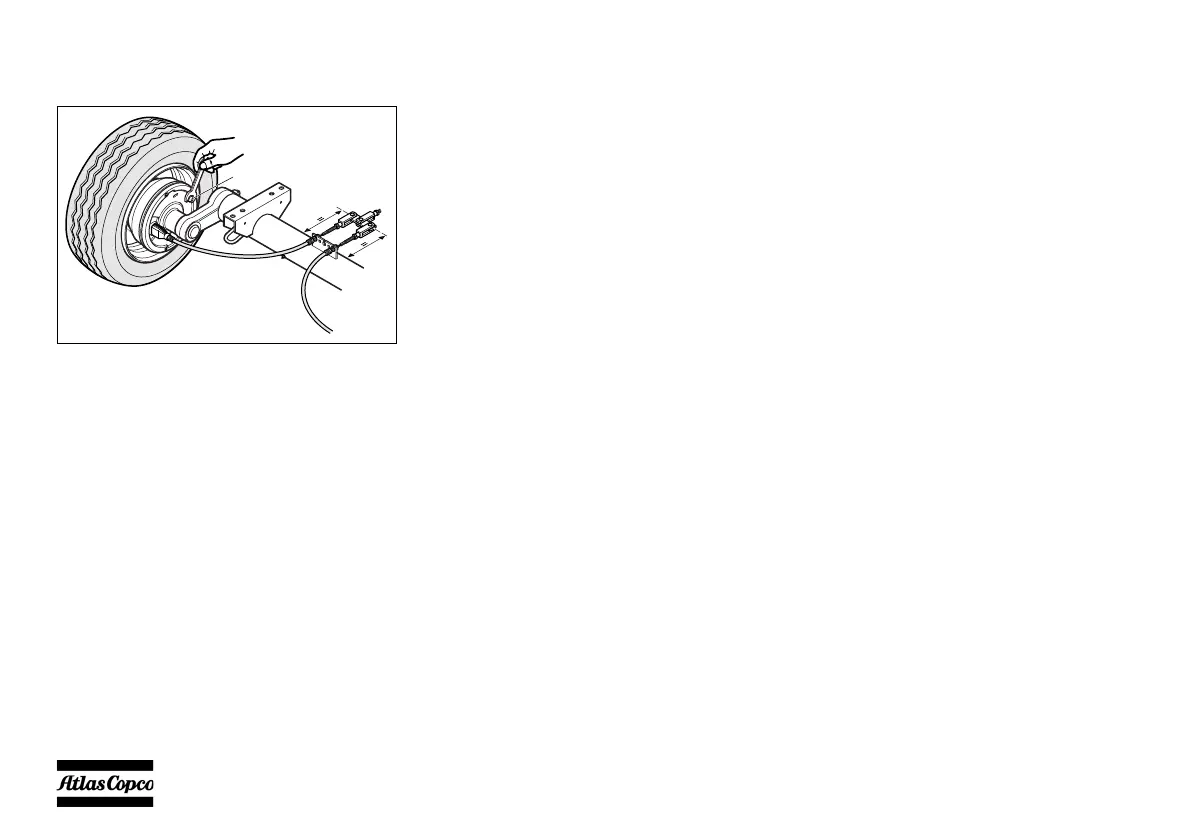

BRAKE SHOE ADJUSTMENT
 Tighten the adjustment nut (1) on the wheel brake
with a spanner until the wheel will not rotate in the
direction of travel.
 Centre the brake shoes by applying the parking
brake several times.
 Turn back the adjustment bolt (1) by
approximately one turn, until no braking effect
can be felt when the wheel is turned in a forward
direction.
 Check the position of the brake equalizer
compensators with the parking brake applied.
 Positioned at right angles to the brake rods = even
play on both wheel brakes.
 Re-adjust brakes if necessary.
 As a check, apply the parking brake slightly and
check that the braking effect on the wheels (in the
direction of travel) is the same on the right and on
the left.
(1)
