- 41 -
STARTING
Switch on the battery switch.
Switch the controller on by switching the Power
switch to the position “ON”.

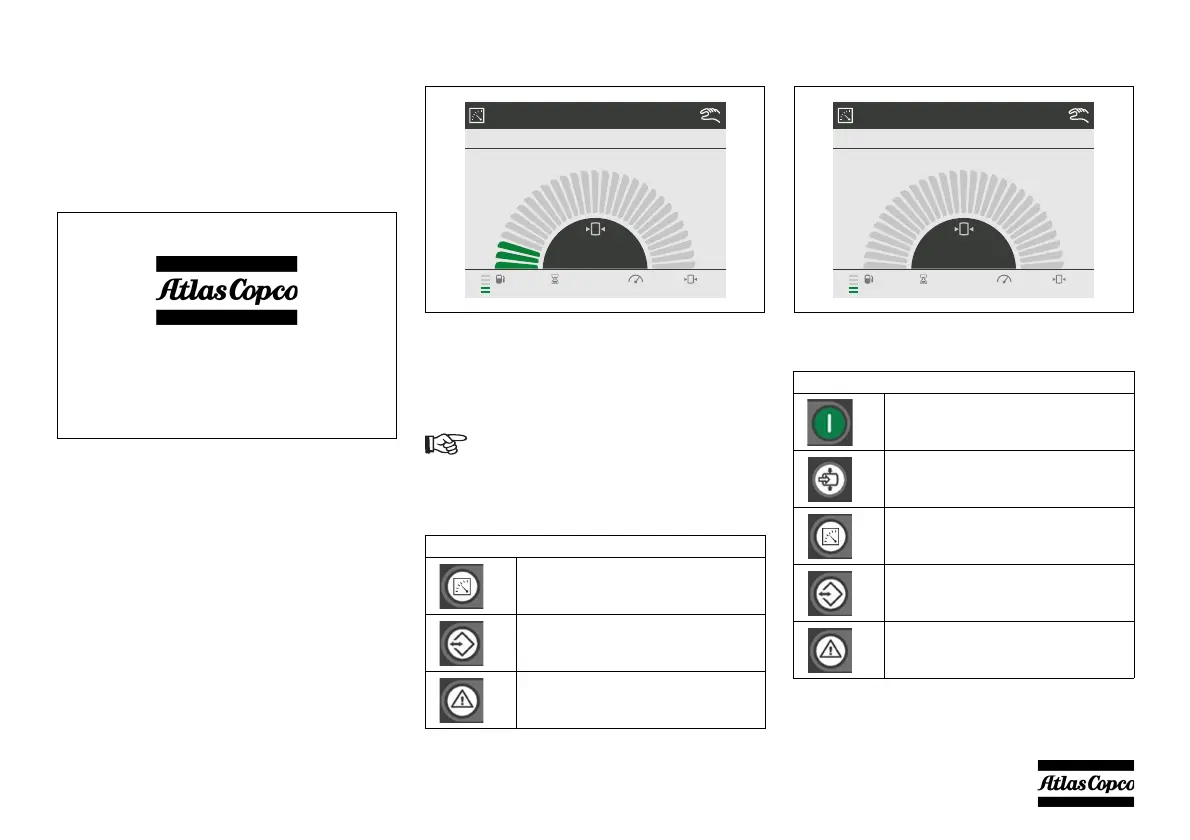

The instrument panel will now perform a selftest; the
following display will be shown and the controller is
initialized:
During initializing all buttons/inputs/outputs/alarms
are inactive.
This view will be shown for about 2 seconds, after
which the display will show the Main View.
The actual vessel pressure is shown. If the measured
vessel pressure is higher than 1.5 bar, the unit will not
start. The vessel pressure has to be lowered by
opening the blow down valve. After power up, the
vessel pressure normally is low enough to proceed
with the starting procedure.
The display now shows
The machine is now ready to be started and is waiting
for a start command.
Xc3003
v1.00.0 (r7307)
If the Power switch is turned to the
“OFF” position while the vessel is
blowing down, it will not power down for
as long as the vessel pressure is higher
than 1.5 bar.
Active Buttons
Measurement View Button
Settings View Button
Alarms View Button
MAIN VIEW
VESSEL BLOWING DOWN
3.9
1200RPM 3.9bar41% 1286h
Active Buttons
Start Button
(to initiate Start command)
Load Button
(to activate Automatic Load)
Measurement View Button
Settings View Button
Alarms View Button
MAIN VIEW
READY TO START
0.0
--RPM 0.0bar41% 1286h
