Change Display Settings
Press the SETTINGS VIEW button
 scroll to ‘1000 GENERAL SETTINGS’
 press ENTER
 scroll to ‘1310 DISPLAY BACKLIGHT’
 ENTER the DISPLAY BACKLIGHT menu
 scroll to the setting you would like to change
 press ENTER.
To change a setting, the red figure is editable.
Scroll up/down and press ENTER to change. Use left/
right to shift between editable figure.
Now press BACK until you’re back in the Main View
(or in the menu you require).
Go To Diagnostics
Press the SETTINGS VIEW button
 scroll to ‘1000 GENERAL SETTINGS’
 press ENTER
 scroll to ‘1150 DIAGNOSTICS’
 ENTER the Diagnostics menu,
 ENTER the ‘ENABLE’ parameter
 scroll to ‘ON’ and press ENTER.
Now the ECU will get PAC (ignition) and one can
perform ECU diagnostics (read DM1 List, DM2 List,
ECU values, perform engine diagnostics, …).
Now press BACK until you’re back in the Main View
(or in the menu you require).
To leave Diagnostics, press the STOP button.
Set the Pressure/Flow Setpoint
(only on AirXpert machines)
When the controller is in the Main View (shift
between PRESSURE and FLOW VIEW with right/
left arrows):
Press ENTER for 2 seconds, and the middle section
becomes green (setting can be edited)
Press the UP/DOWN arrows to set the requested
pressure/flow.
Press ENTER to confirm the new setting.
Set the AutoLoad Function
Press the SETTINGS VIEW button
 scroll to ‘1000 GENERAL SETTINGS’
 press ENTER
 scroll to ‘1160 AUTO LOAD’
 ENTER the ‘FUNCTION’ menu,
 scroll to AUTO LOAD setting
 press ENTER.
Now the AutoLoad function is active, and as soon as
the unit is Ready To Start, the display will show the
Auto Load icon.
Now press BACK until you’re back in the Main View
(or in the menu you require).

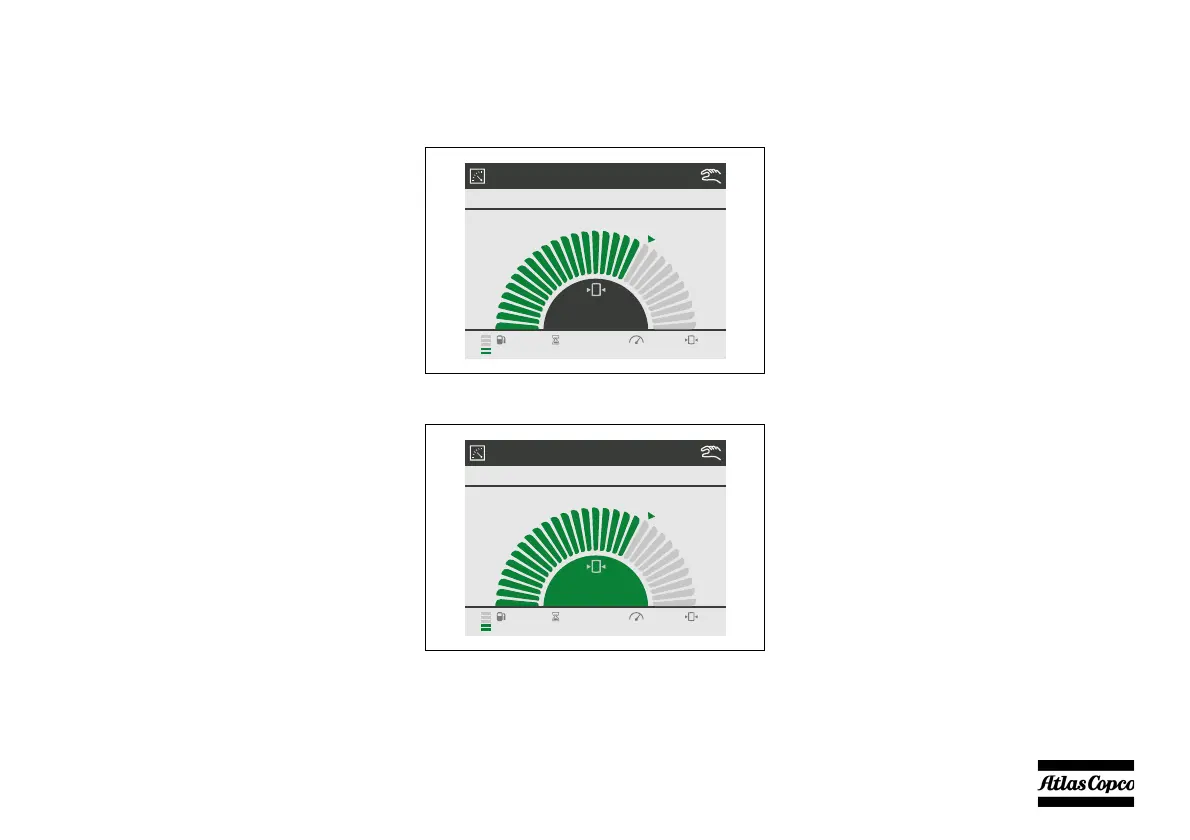

MAIN VIEW
LOADED
18.6
1800RPM 18.6bar41% 1286h
MAIN VIEW
LOADED
18.6
1800RPM 18.6bar41% 1286h
