Atlas Copco XRVS 647 - Control Panel Interface; OVERVIEW ICONS AND VIEWS

- 57 -

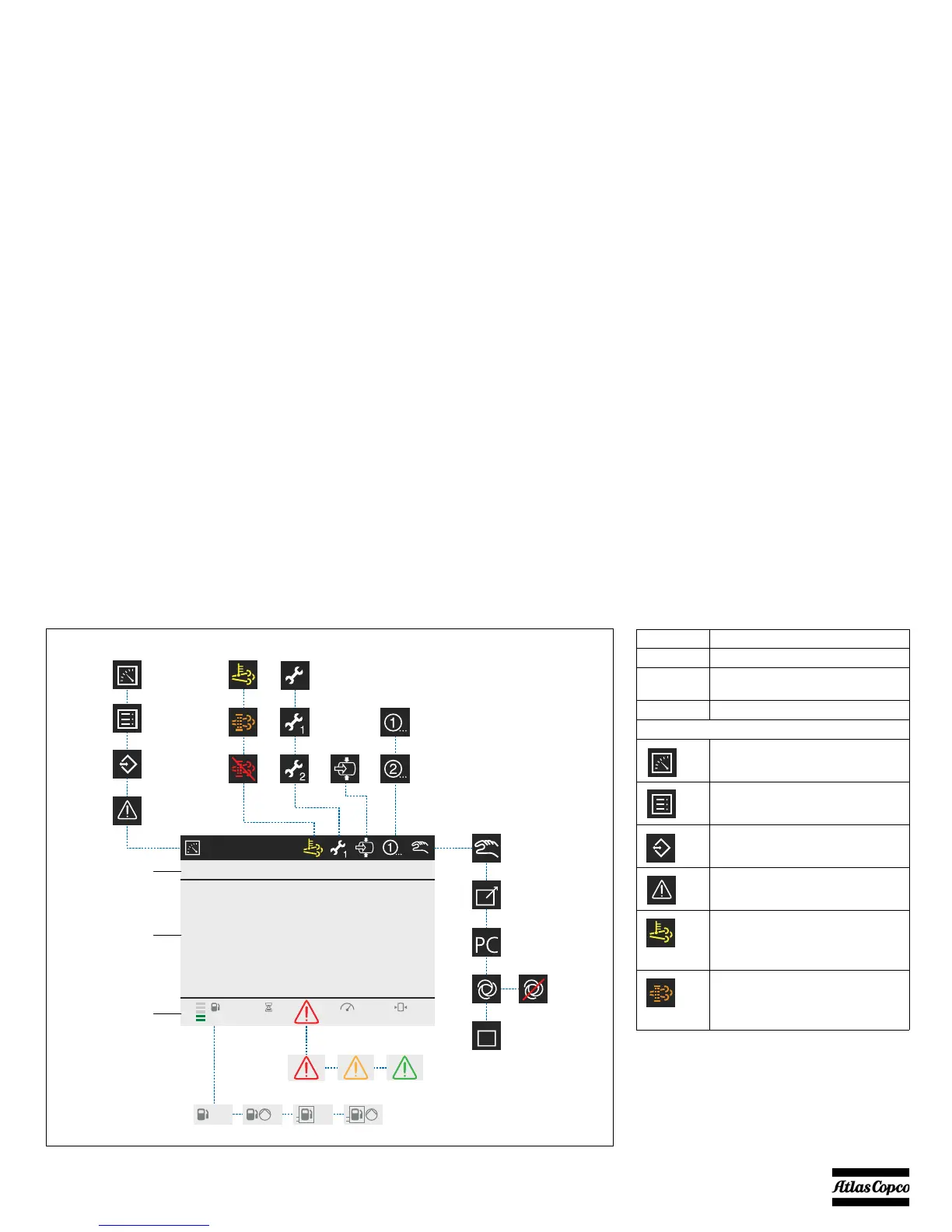

OVERVIEW ICONS
MAIN VIEW
LOADED
1300RPM 22.4bar41% 1286h
1
2
3
0
Reference Name
1 Compressor status
2 Vessel pressure indication or info
text
3 Compressor info
Main View Indication
Measuring View Indication
Settings View Indication
Alarm View Indication
DPF REGENERATION
High Exhaust System Temperature.
Means that the Diesel Particle Filter
is being regenerated.
DPF REGENERATION NEEDED
Means that the Diesel Particle Filter
needs to be regenerated.
Please force DPF Regeneration.
