. OPERATION INSTRUCTIONS
1. Install the oil hose between oil cylinder and power unit, connect with the power supply wire
well. The machine can be ready to use.
2. The roller assy must be disengage when lifting vehicle (See Fig.20).
3. To
raise and lock the lift: Press the button up till the lift is raised to the required height and the
locks are in engaged (See Fig.18),then push release handle of the power unit, the lift would be
locked.
4. To lower lift˖Press the button UP, until the safety lock is in the released position (See Fig.19 ),
lower lift by pushing lowering handle.
5
. Move lift: Pull up roller bracket, lock two roller assy to the lift with roller shaft.
(See Fig. 20 & 21 ). Moving the lift by the power unit stand.
5. Needle Valve adjustment˖
Loosen lock nut, adjust the knob in clockwise for lowering the lift slowly;Adjust the
knob in anticlockwise for lowering the lift faster. Lock the nut for suitable lowering speed.

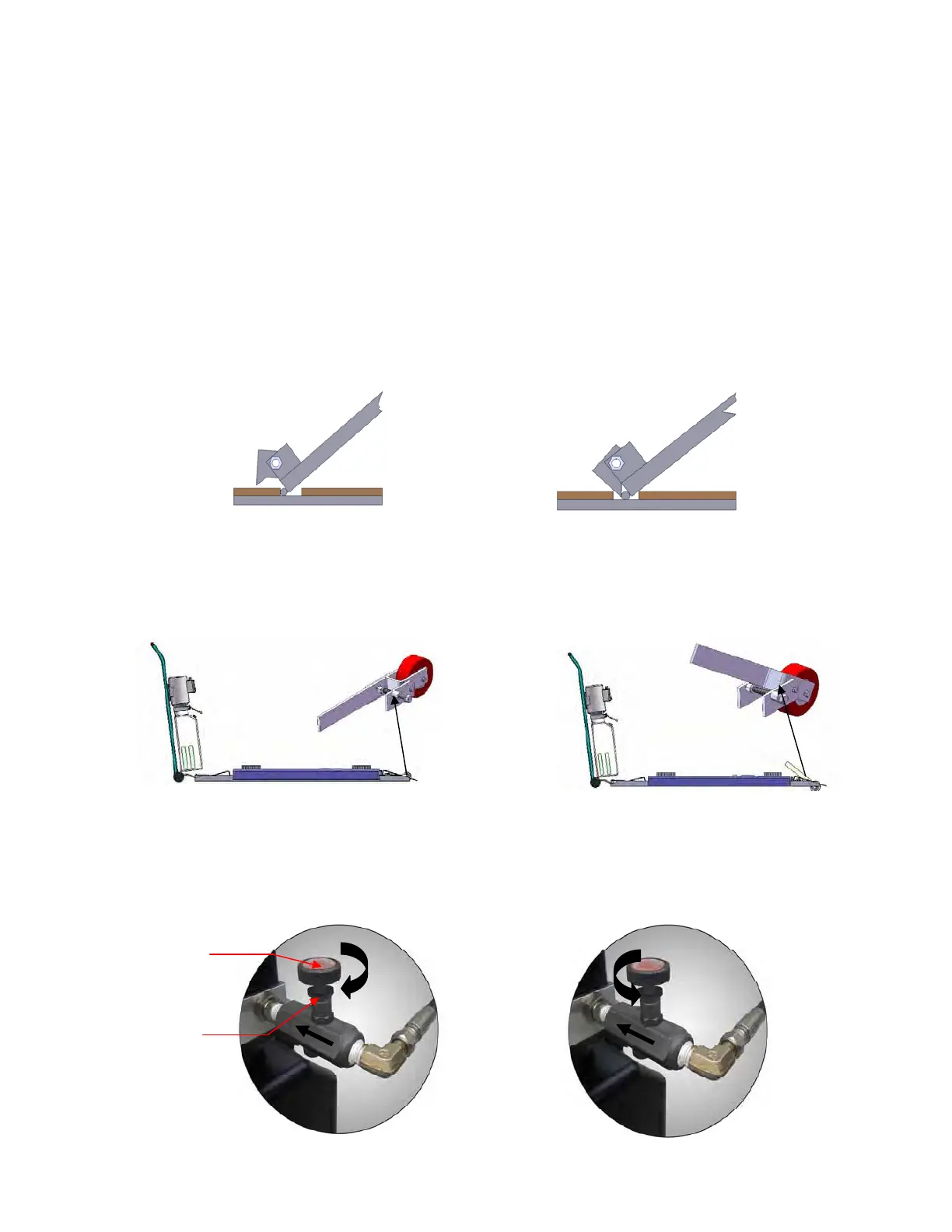

Fig.22
)LJ
)LJ
Fig.20
Fig.21
Adjust knob in clockwise Adjust knob in anticlockwise
Lock nut
Adjusted knob
Fig.22
Roller Assy. disengaged
Roller Assy. engaged
