Atlas WB11 User Manual

REV. 03 18 / 22
Diagnosis of phase
Diagnosis of inner piezo
Diagnosis of outer piezo
Press to end SELF-DIAGNOSIS,
CHAPTER 7 – SET UP
7.1 SELF-DIAGNOSIS

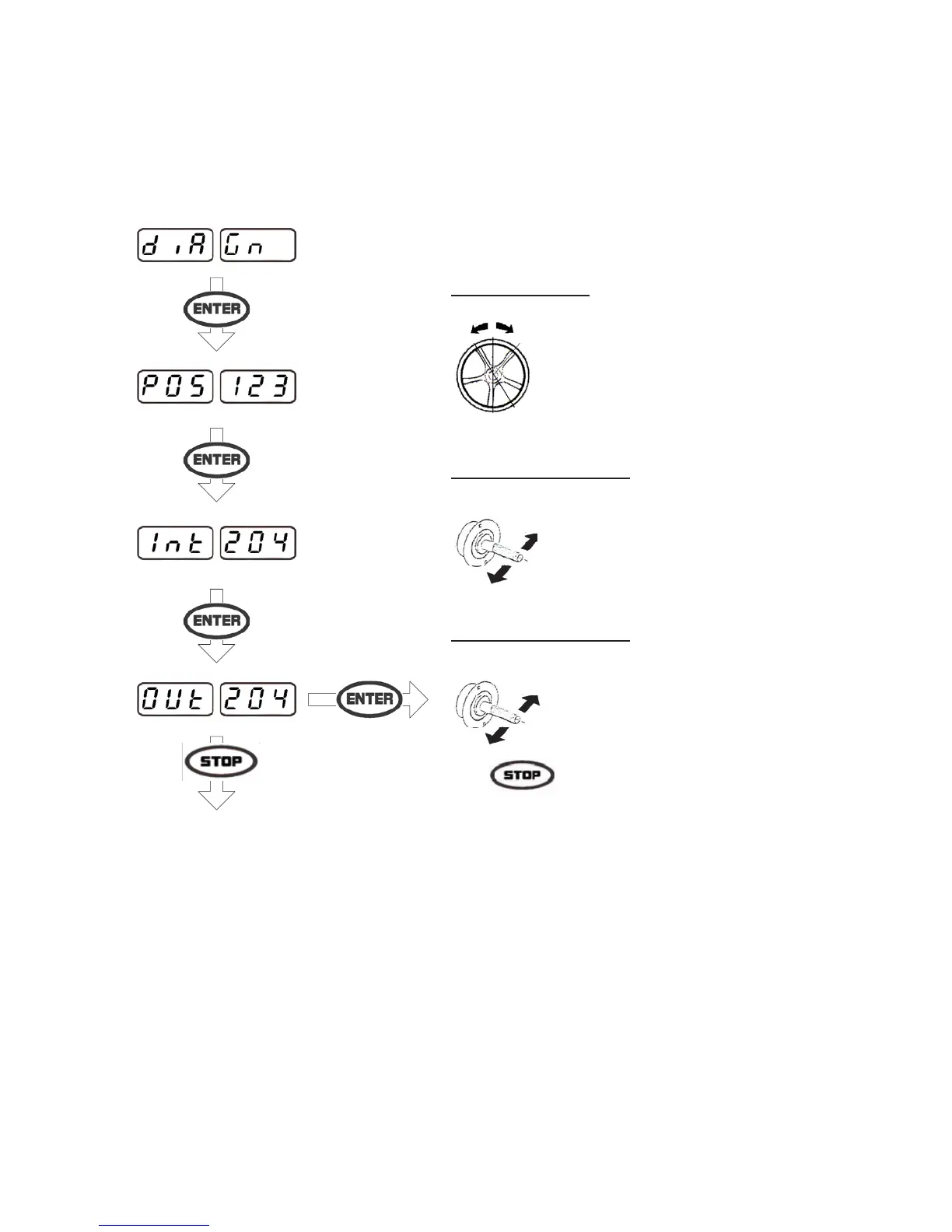

Fig. 17
Rotate the wheel in direction of
rotation, the readouts display from 0 to
255.
Rotate the wheel in reverse direction of
rotation, the readouts displays from 255
to 0.
Push the balancing shaft from any direction,
the readouts change.
Push the balancing shaft from any
direction, the readouts change.
