REV. 03 6 / 22
x Anchor-down installation unnecessary

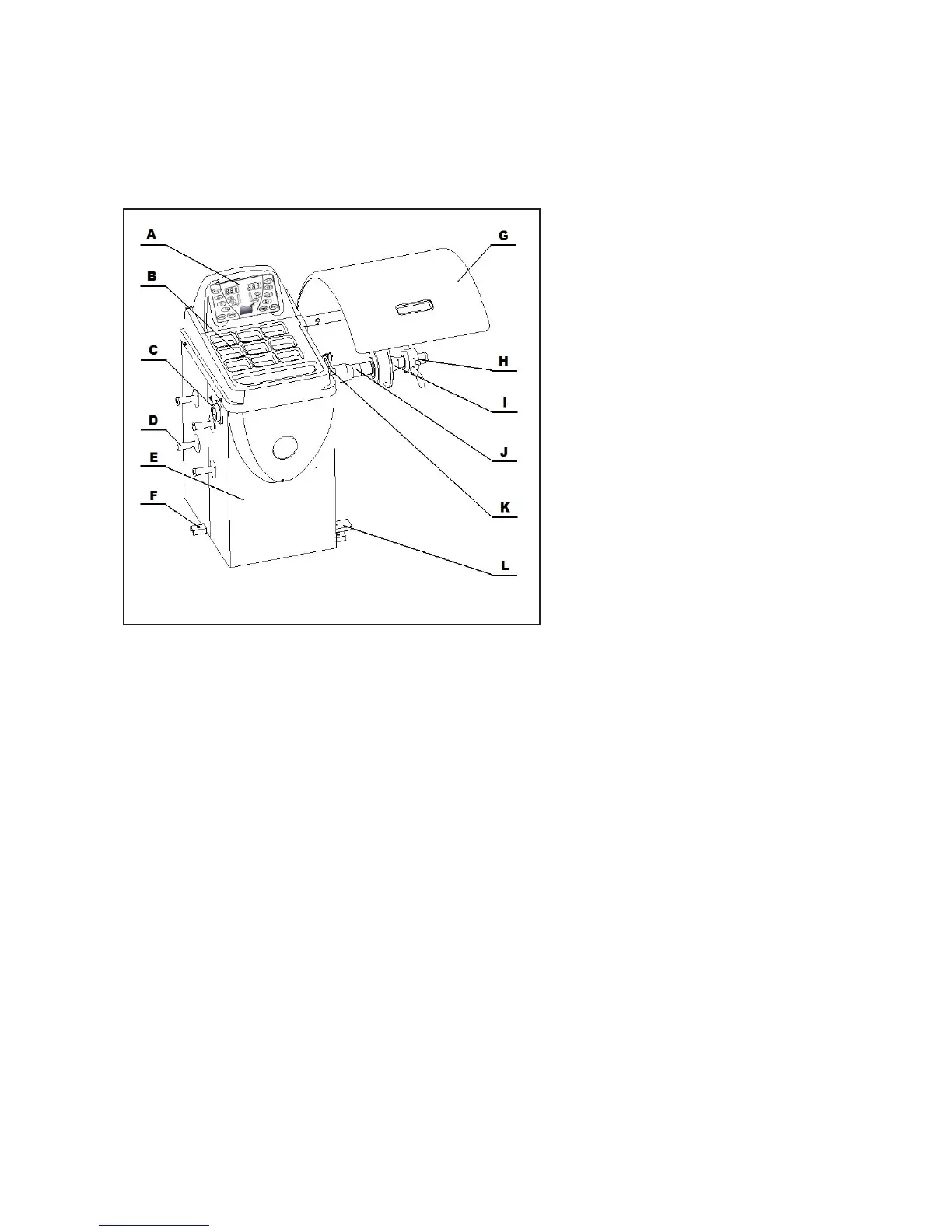

2.5 MACHINE DESCRIPTION
A: Control panel
B: Wheel weight tray/cover
C: Main switch
D: Cone holder
E: Machine body
F: Feet
G: Wheel guard
H: Quick locking nut
I: Cone adaptor
J: Wheel support shaft
K: Measuring gauge
L: Foot brake
2.6 TECHNICAL SPECIFICATION
Max. wheel weight 75kg
Wheel diameter 39” (1000mm)
Rim diameter 10" - 26" (255 - 660mm)
Wheel width 1.5" - 20" (39 - 510mm)
Balancing precision
f1g
Resolution 1.4 degrees
Cycle time 7 s
Max. balancing speed 150 rpm
Power supply 110V/220V/230V-1Ph
Motor power 180w
N
oise level < 70 dbA
Fig. 1
