ATtiny25/45/85
23.1 Active Supply Current

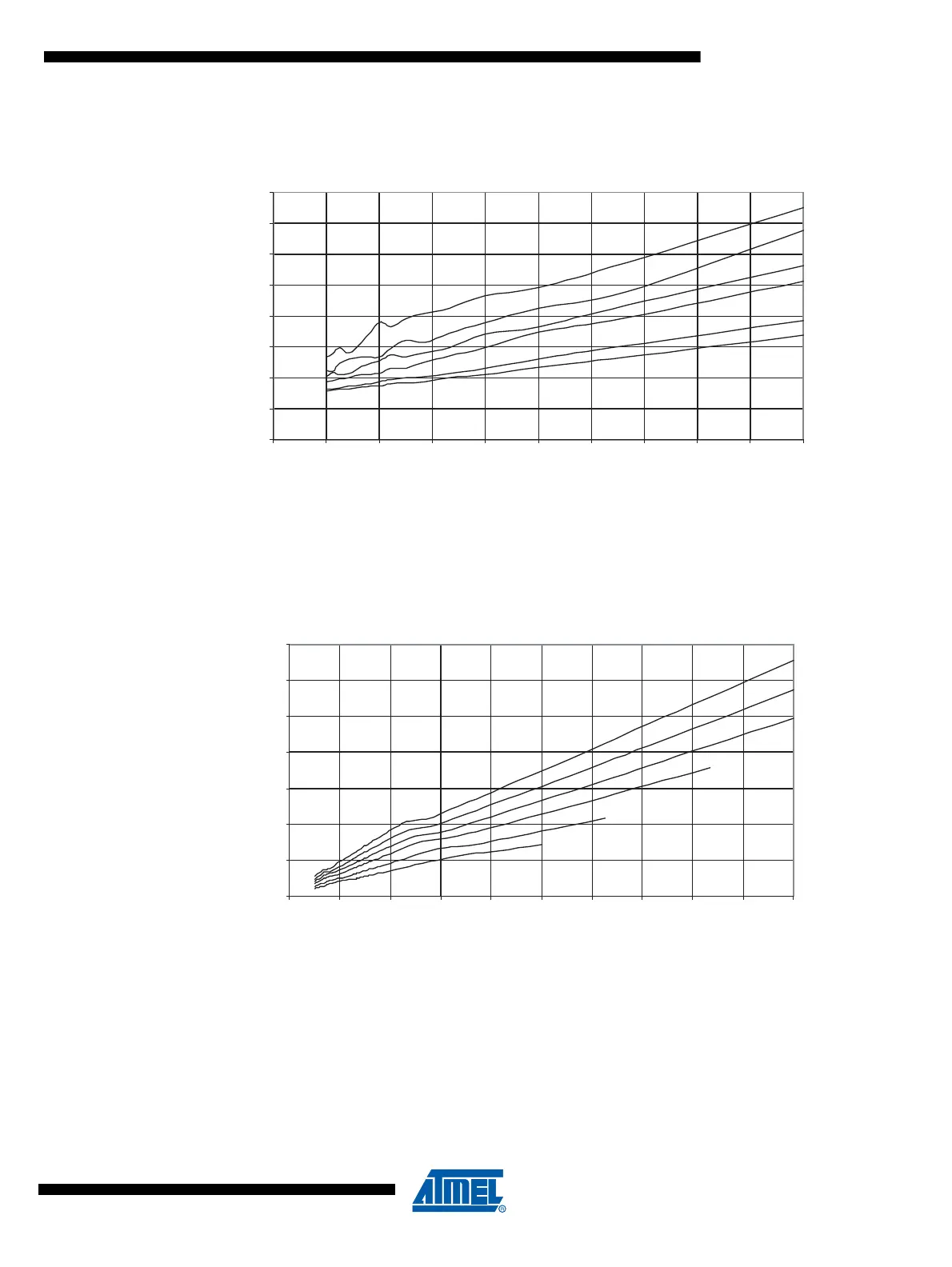

Figure 23-1. Active Supply Current vs. Frequency (0.1 - 1.0 MHz)
Figure 23-2. Active Supply Current vs. Frequency (1 - 20 MHz)
5.5 V
5.0 V
4.5 V
4.0 V
3.3 V
2.7 V
0.000
0.005
0.010
0.015
0.020
0.025
0.030
0.035
0.040
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Frequency (MHz)
ACTIVE SUPPLY CURRENT vs. FREQUENCY
1 - 20MHz
5.5 V
5.0 V
4.5 V
4.0 V
3.3 V
2.7 V
0
2
4
6
8
10
12
14
0 2 4 6 8 10 12 14 16 18 20
Frequency (MHz)
I
CC
(mA)
