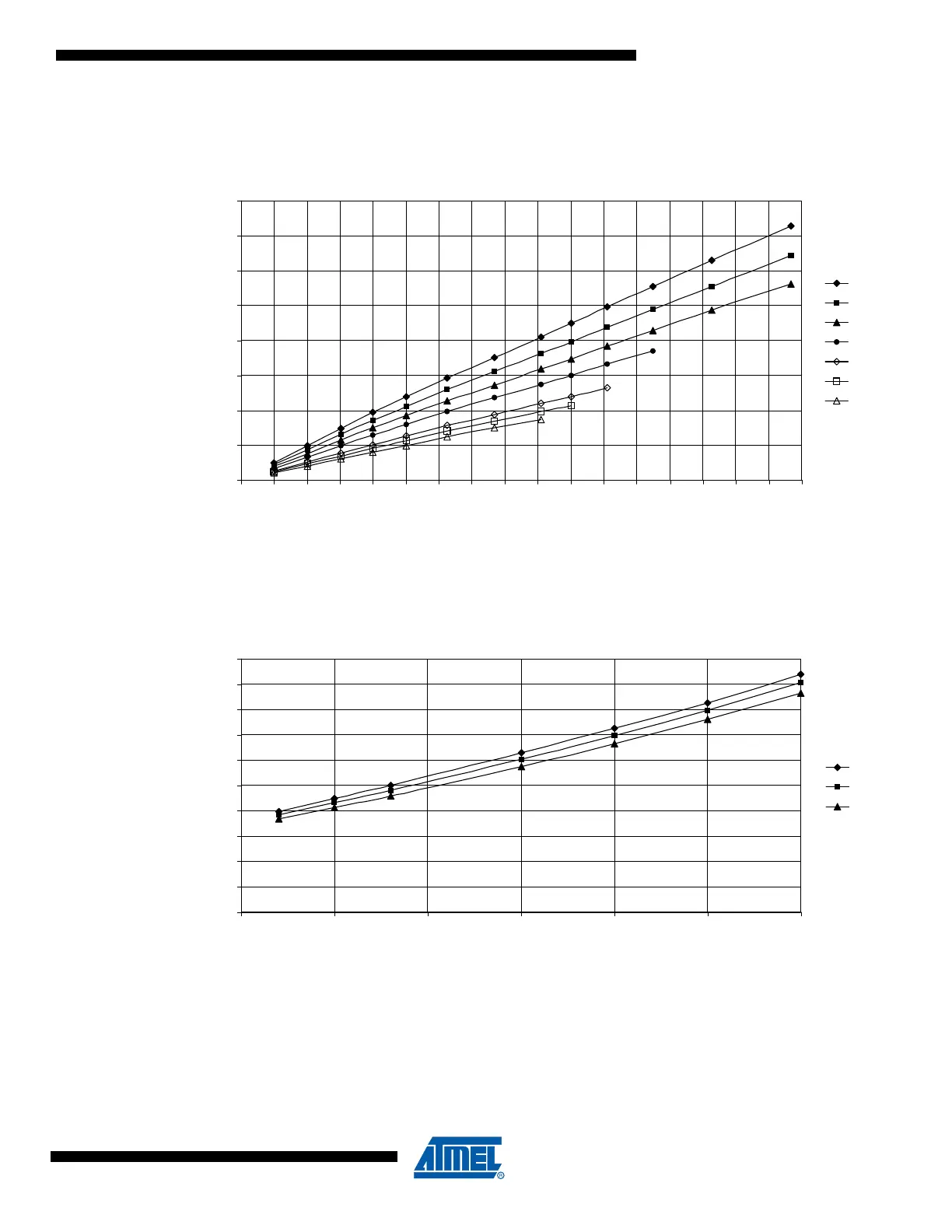

Figure 28-2. Active Supply Current vs. Frequency (1 - 16 MHz)
Figure 28-3. Active Supply Current vs. Vcc (Internal RC Oscillator 8 MHz)
ACTIVE SUPPLY CURRENT vs. FREQUENCY (25°C, 1 - 16 MHz)
0
5
10
15
20
25
30
35
40
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
Frequency (MHz)
Icc (mA)
5.50V
5.00V
4.50V
4.00V
3.30V
3.00V
2.70V
ACTIVE SUPPLY CURRENT vs. Vcc (Internal RC Oscillator 8 MHz)
0
2
4
6
8
10
12
14
16
18
20
2.5 3 3.5 4 4.5 5 5.5
Vcc (V)
Icc (mA)
85°C
25°C
-40°C
