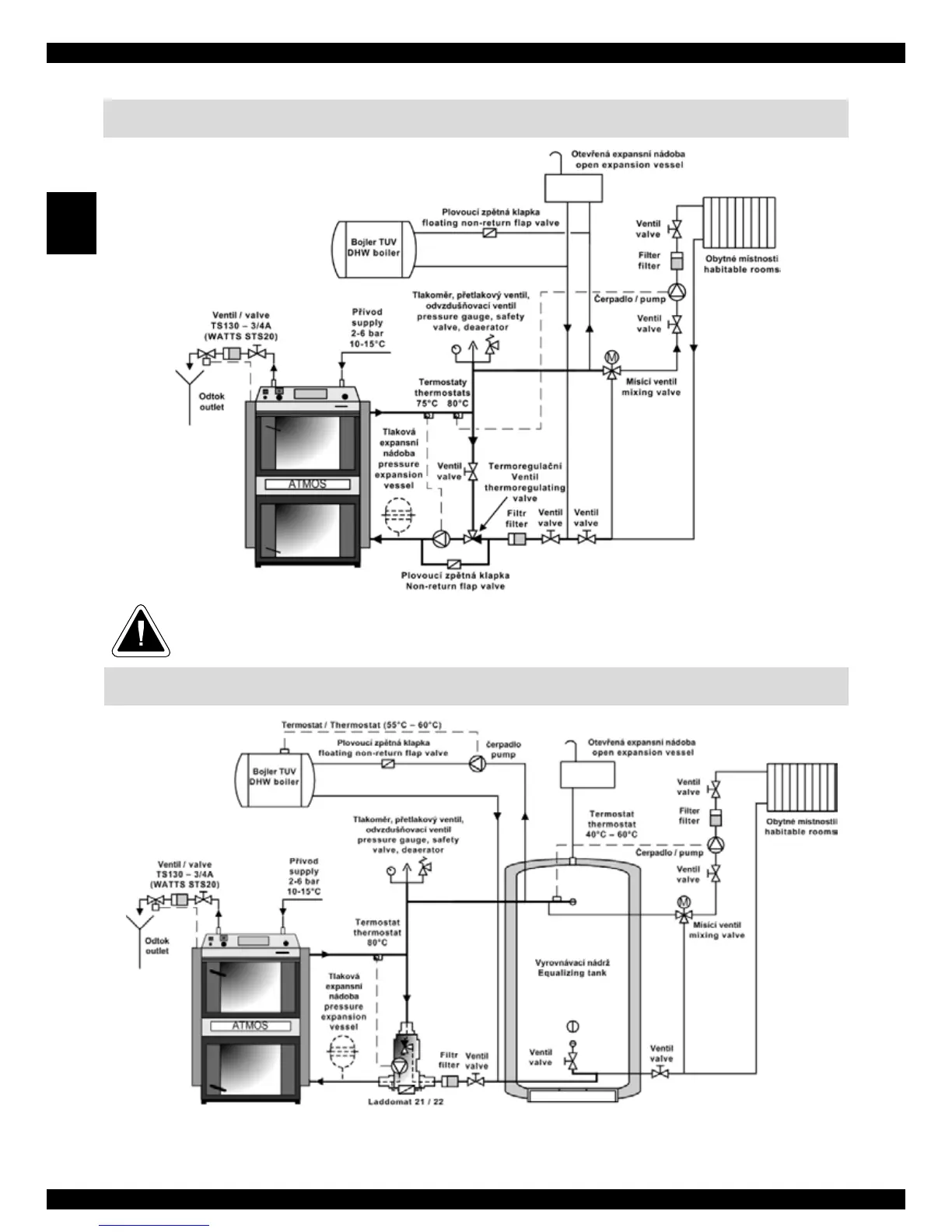

20. Specified boiler connection with thermoregulation

ATTENTION – when connecting the cooling loop to prevent overheating, it is possible

to omit the return valve on the thermo-valve and pump by pass.

21. Boiler connection with equilizing tank
