Atomic BZ3 - Step 9.0 - Steering Linkages

BZ3 Instruction manual
11
11
Video to show how to smooth ball links, please scan the QR code.
2.5 Ball Cap
2.5 Ball Cap
Normal Thread Side Reverse Thread Side
19mm Center to Center

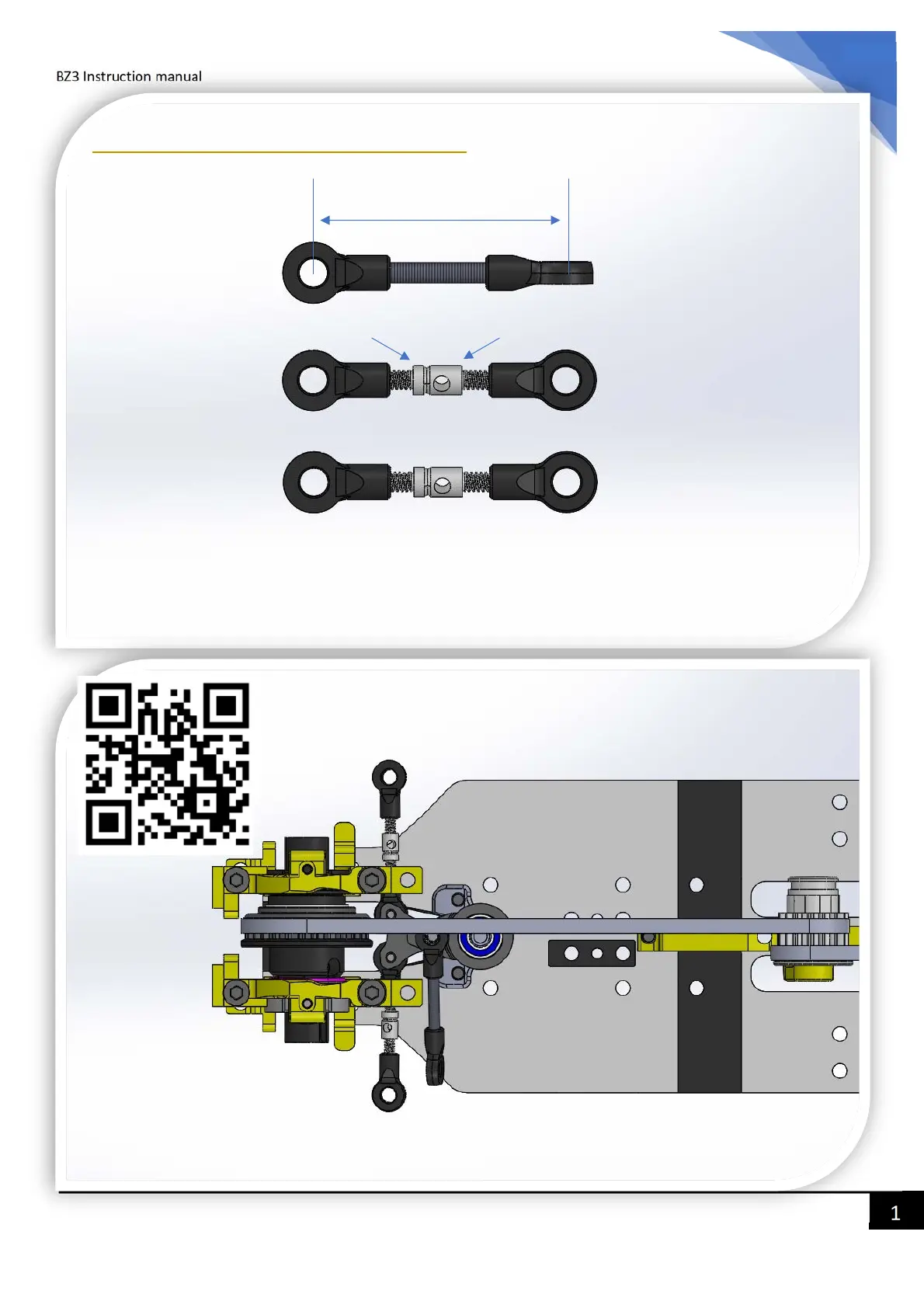

Step 9.0 – Steering Linkages
Make 3 Linkages as above, approximately
19mm center to center long.
Fix the linkages as shown
