Atomic BZ3 - Step 15 - Front Knuckles

BZ3 Instruction manual
18
18
Long CVD
3.0 x 4.0 x 0.1 washer
3.5 Ball Head
3.5 Ball Head
2.5 Ball Head
3 x 6 x 2 Flange Bearing
3 x 6 x 2 Flange Bearing

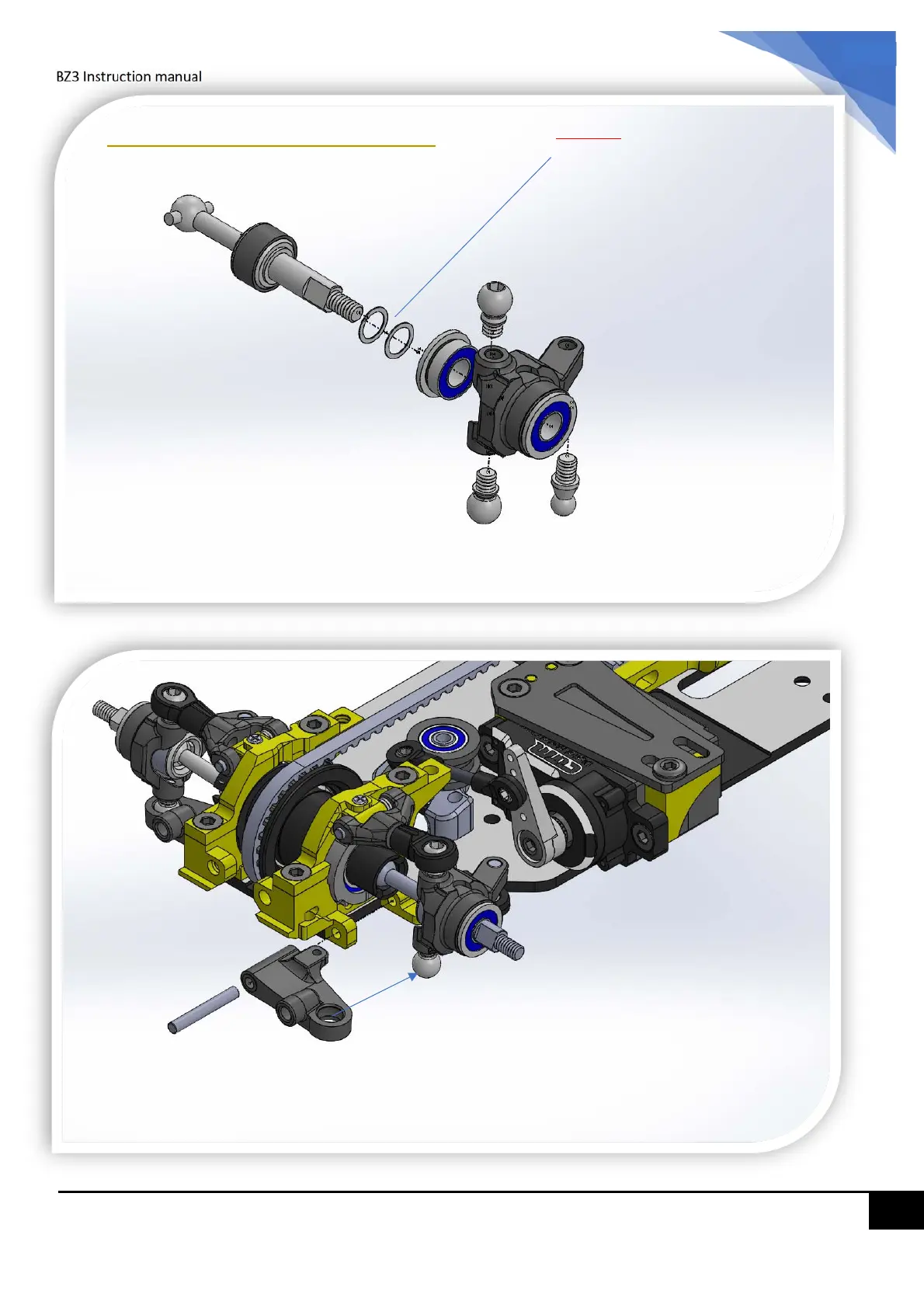

Caution:
Apply 0.1mm washer 2 or 3 pcs
(around 0.3mm), to minimize the
play of the CVD and bearing.
1.5 *12 pin
Left (L) arm
Step 15 – Front Knuckles
