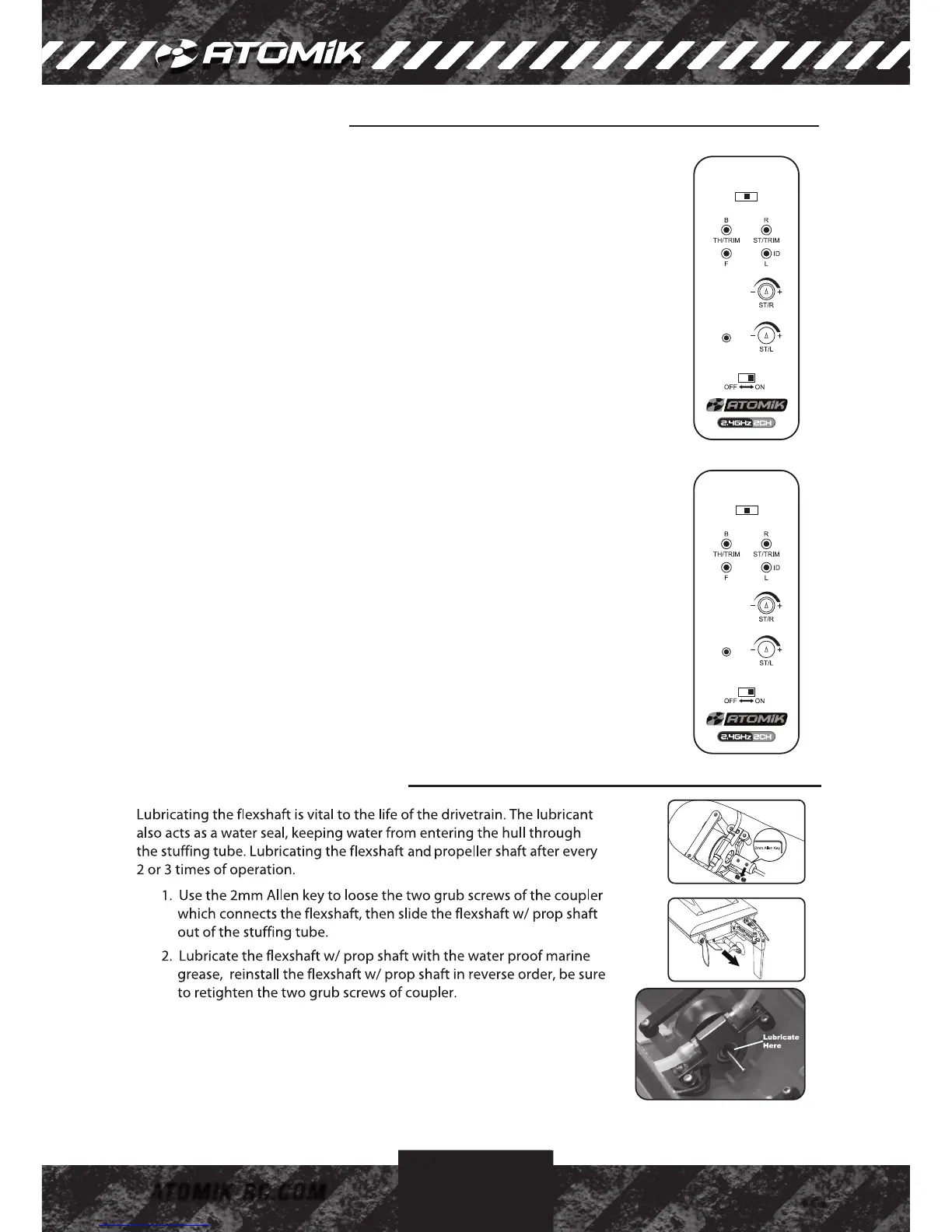

Lubricating the Drive Shaft
End Point Adjustment
Trim Adjustments
IMPORTANT:
The bearing in the water cooled motor mount must be regularly lubricated with oil, grease or
Vaseline® petroleium jelly to prevent corrosion through the ingress of water. Insucient
lubrication may lead to the premature failure of the bearing. Note: Image shows drive shaft
removed for clarity - the bearing can be lubricated with the drive shaft in place.
REV
POWER
NOR
ST
REV
POWER
NOR
ST
Functions
Use this when performing left and right steering angle adjustments, throttle high
side/brake side operation amount adjustment during linkage. End Point
Adjustment (EPA) adjusting value range: 0% - 100%.
Settings
1. Steering (right side) adjustment
Rotate “ST/R” knob to the left end points means minimum value 0%, right end
point means maximum value 100%.
2. Steering (left side) adjustment
Rotate “ST/L” knob to the left endpoint means minumum value 0%, right end
point means maximum value 100%.
CAUTION:
When adjusting this function, make sure the direction is in agreement
with the boat direction, you can adjust by the “REV - NOR” button.
Steering trim, adjust “ST/TRIM” “R/L” so that rudder is centered prior to operation,
you may adjust this control to make the boat run straight during operation.
Throttle trim, adjust “TH/TRIM” “B/F” to stop propeller from turning while the
throttle trigger is in the neutral position.
CAUTION:
When adjusting this function, make sure the direction is in agreement with the
boat direction, you can adjust by the “REV - NOR” button.
