Atomos SHINOBI Quick Start Guide

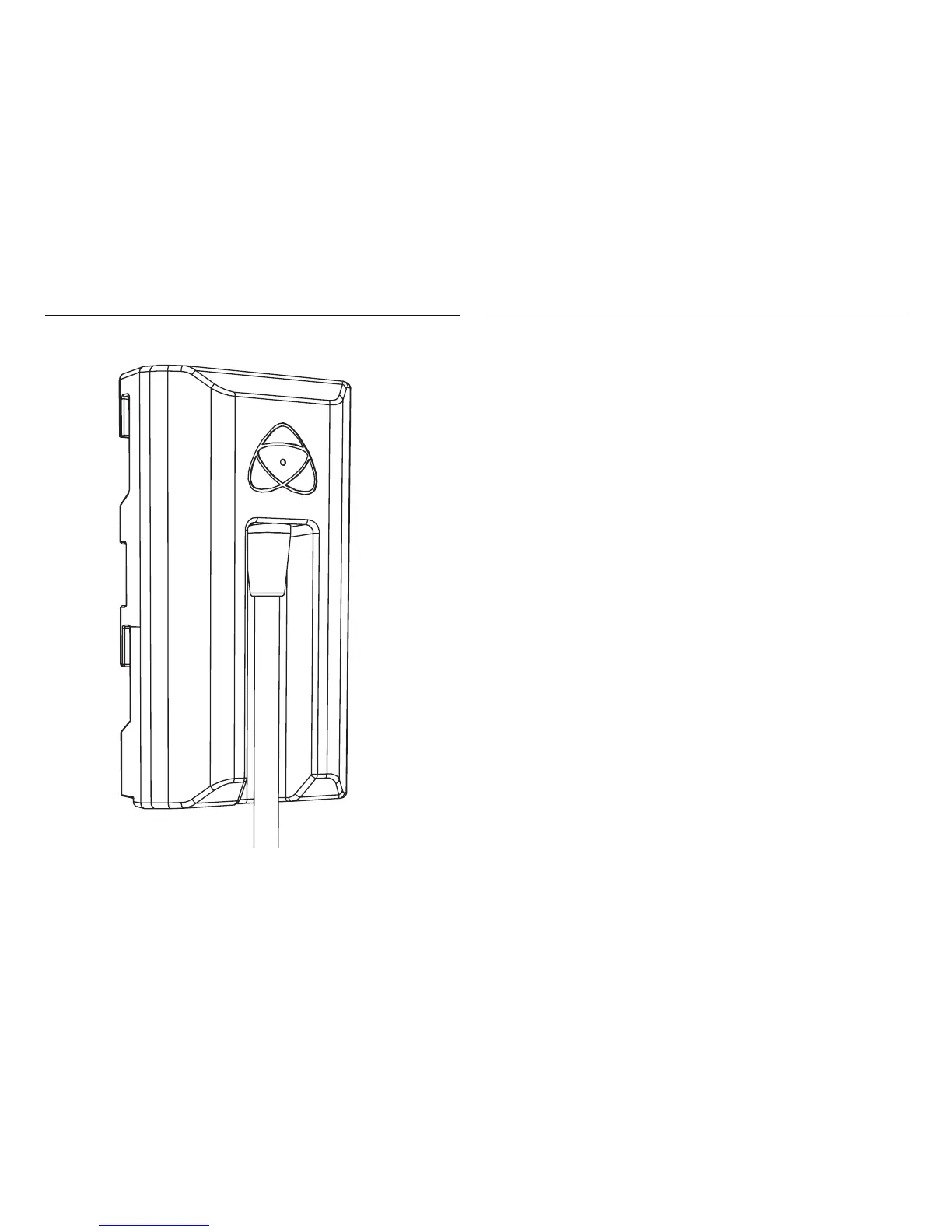

12V-15W AC Battery Eliminator
P/N: ATOMACP005
On/O and Screen Lock
To turn the Shinobi on, press the power button on the side of
the unit. To shut down, hold the button for at least 4 seconds
(until unit turns off).
Remote Port
The Shinobi screen can be calibrated using the X-Rite
i1Display Pro. To connect you will need a USB to serial cable.
Refer to the AtomX accessory range. USB to serial cable
(ATOMCAB004).
HDMI In
HDMI input connection used to record to the Shinobi
supports up to 4Kp30.
Battery Release
Press the release button and slide battery away from unit to
remove.
SD Card Slot
Use SD cards to load LUTs and/or update rmware.
Screw Holes / Mounts
1/4” screw hole top and bottom.
Physical features
Shinobi - Quick Start Guide 5

Atomos SHINOBI Specifications

General

Aspect ratio	16:9
LED backlight	-
Pixel density	427 ppi
Display diagonal	5.2 \
Display technology	IPS
Input voltage	6.2 - 16.8 V
Power supply type	Battery
Power consumption (max)	7 W
Power consumption (typical)	4 W
HDMI version	1.4
Headphone out	Yes
Product color	Black
Housing material	Polycarbonate (PC)
Connecting thread	1/4 \
Compatible memory cards	SD
Cables included	HDMI
Audio sampling rate	48 kHz
Supported video modes	720p, 2160p
Resolution at capture speed	1280x720@50fps, 1920x1080@23.98fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@59.94fps, 3840x2160@23.98fps, 3840x2160@24fps, 3840x2160@25fps, 3840x2160@29.97fps, 4096x2160@23.98fps, 4096x2160@24fps, 4096x2160@25fps

Weight and Dimensions

Depth	31.5 mm
Width	151 mm
Height	91.5 mm
Weight	196 g
