ATOMSTACK A10 Pro Installation Manual

Logo side up
Screw:
M5*25
Gap side
outwarder
1
1
3
3
3
Y
X
2
M5-6
2

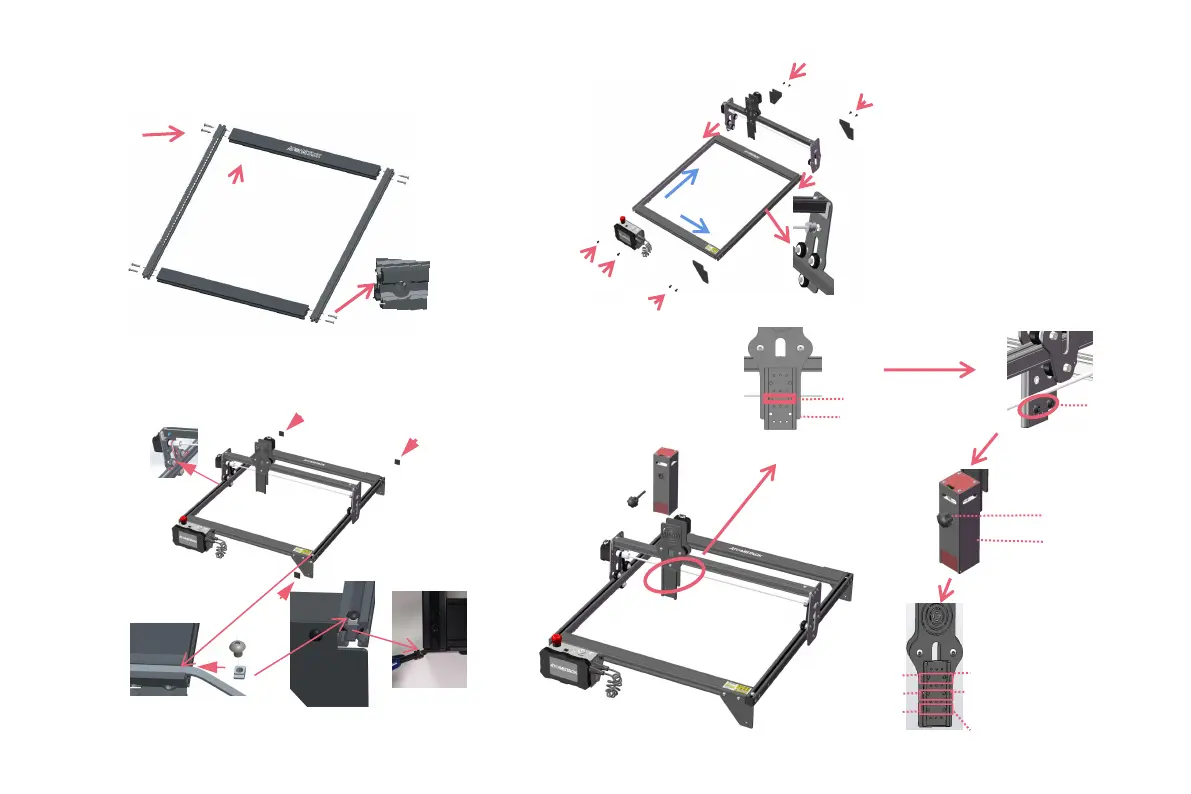

S t e p 2
The guide rail passes through the middle of the 3
rollers. Loosen the distance between the upper and
lower guide wheels appropriately.
3
4
1
2
3 3
Tighten the T nut and cut off
the excess belt.
group 2
installation hole
slide block
torx handle
Alongside
Figure 3
Figure 4
Fasten
Screw
Figure 2
Figure 1
S t e p 3
S t e p 1
S t e p 4
Engraving or cutting scope
0~65mm
Engraving or cutting
scope 0~45mm
Engraving or cutting scope
0~85mm
Group 3rd
Group 2nd
Group 1st
P a r t 4 ： I n s t a l l a t i o n S t e p s

ATOMSTACK A10 Pro Specifications

General

Laser Power	10W
Laser Wavelength	455nm
Connectivity	USB
Engraving Accuracy	0.01mm
Output Voltage	12V
Engraving Area	410mm x 400mm
Material Compatibility	Wood, Plastic, Leather
Control Software	LaserGRBL
Laser Protective Cover	Yes
Input Format	BMP, JPG, PNG, DXF
Power Supply	AC 100-240V, 50/60Hz
Focusing Method	Fixed focus laser, no need to adjust focus before engraving
