ATOMSTACK MAKER R1 - Connection Cable Use

3
1. The chuck has two connecting wires, black plug and white plug, note that they are wired in a dierent order and need to be
connected carefully.

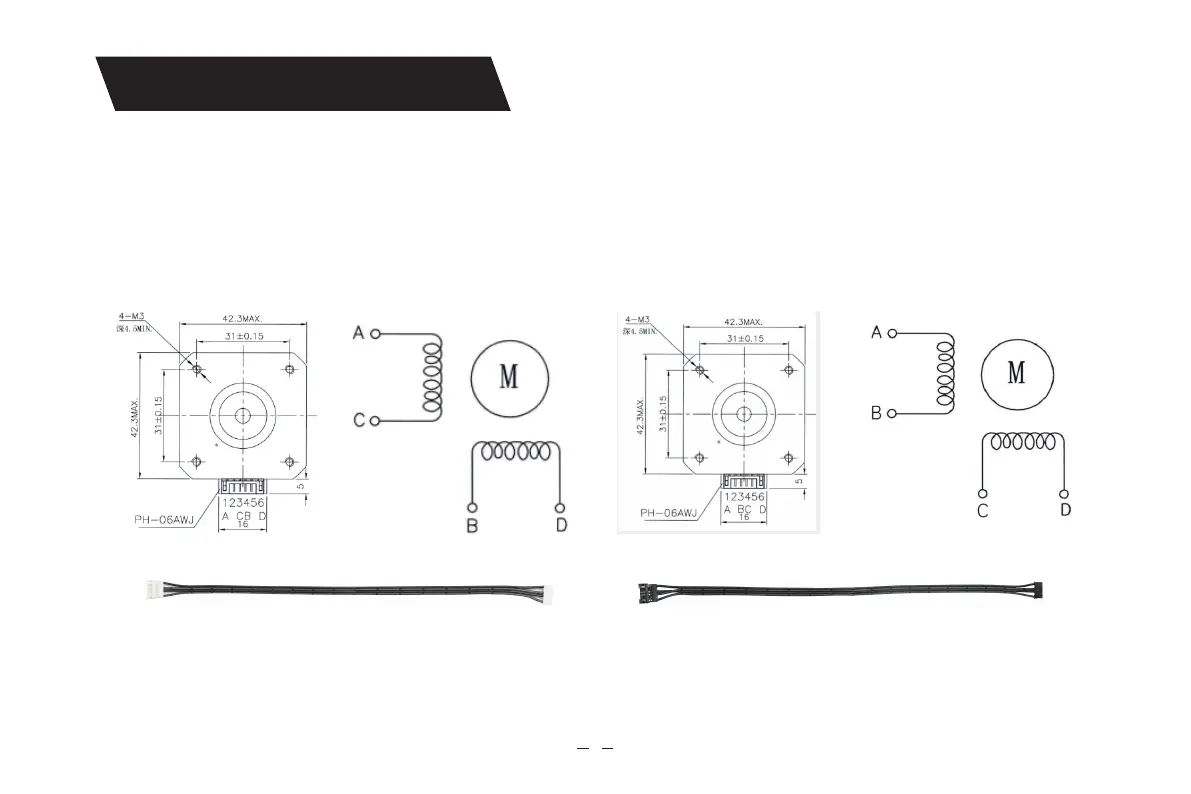

1.1 White plug wire connection sequence 1.2 The connection sequence of black plug wires
4PIN white plug cable for connecting ATOMSTACK laser engraving machine.
4PIN black plug cable for connecting to third pay laser engraving machine.
The R1 chucking kit suppos ATOMSTACK and third pay laser cutters and engravers. You need to connect it to the device and use the appropriate software to operate it. If you
cannot connect it, please change the order of the wires and change the processing as shown in Figure 1.1-1.2.
3.Connection cable use
