6 Series 31XX, 32XX Furnaces | C. Installation
C. Installation
C.1 General Installation
This section describes how to prepare your Applied Test Systems (ATS) furnace for
operation. Only perform the steps that apply to your specic furnace type. The installation
of the equipment must be performed by a qualied and licensed electrician in accordance
with National Electric code and local codes.
C.2 Positioning and Connecting
The following procedure describes how to position and connect an ATS Furnace that
is equipped with leg levelers. For furnaces that are mounted to a test machine or are
mounted using a test bracket, refer to appropriate mounting drawings.
1. Carefully remove the shipping crate and packing materials. Do not discard the packing
materials until all items on the invoice have been accounted for.
2. Position the furnace in the desired location.
3. If the unit did not come with a control system, skip to step 8 (p. 7).
4. The control system may or may not have a power cord supplied. If it does not, remove
the top cover of the control system to locate the power supply connection. To do this,
remove the two screws at the top of the back of the unit and slide the cover o toward
the back side. See Figure C.1 for screw location.
NOTE: Figure C.1 shows a typical control system. Not all control systems
will appear exactly the same.

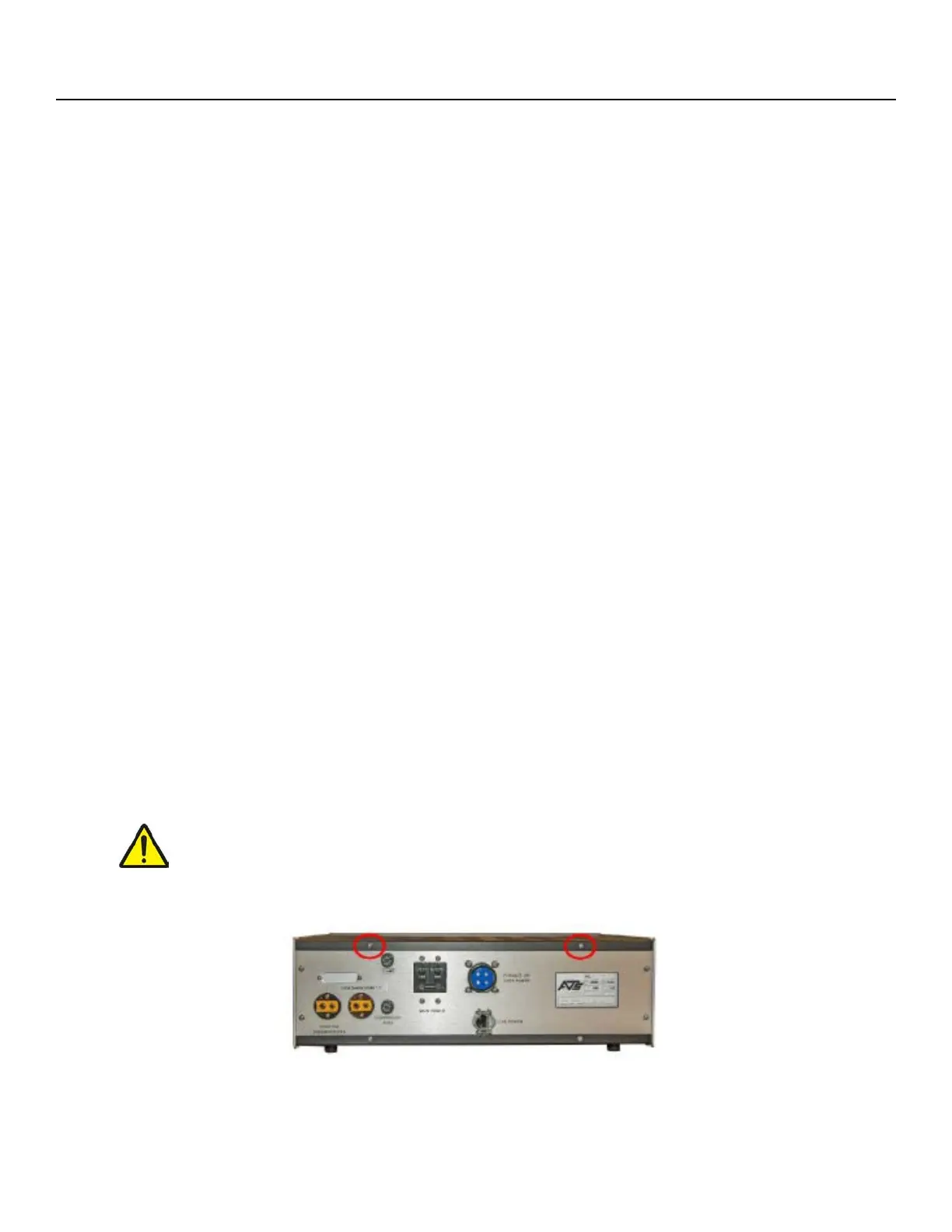

Figure C.1 - Typical Control System (Back)
