Owner’s Guide
8
ENGLISH

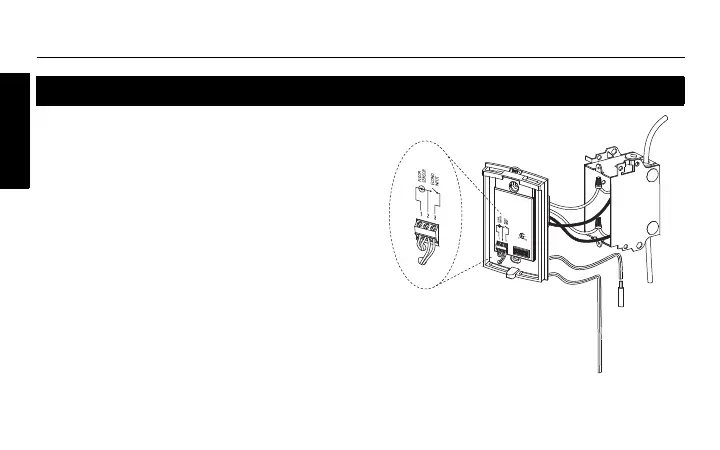

Insert the floor sensor cable through one of the two
openings on the wallplate and connect the sensor
wires to terminals 1 and 2 (no polarity).
• The sensor cable must not come in contact with the
electrical wires and must be routed outside the
electrical box and follow the wall down to the floor.
• Position the sensor cable such that it does not
come in contact with the floor heating wires. The
sensor must be centered between two floor heating
wires for best temperature control.
• Do NOT staple the sensor head (the plastic end) to
the floor. Doing so might damage the sensor. Any
damage might not be noticeable during testing but
can become apparent several days later.
If you wish to connect a remote control device (see
page 17), insert the wires (use 18- to 22-gauge flexible
wires) through one of the two openings on the wallplate
and connect them to terminals 2 and 3 (no polarity).
Connecting the floor sensor / remote control
Floor
temperature
sensor
Remote control device
33-00221EFS_C.AUBE.book Page 8 Wednesday, January 20, 2021 11:17 AM
