Owner’s Guide
4

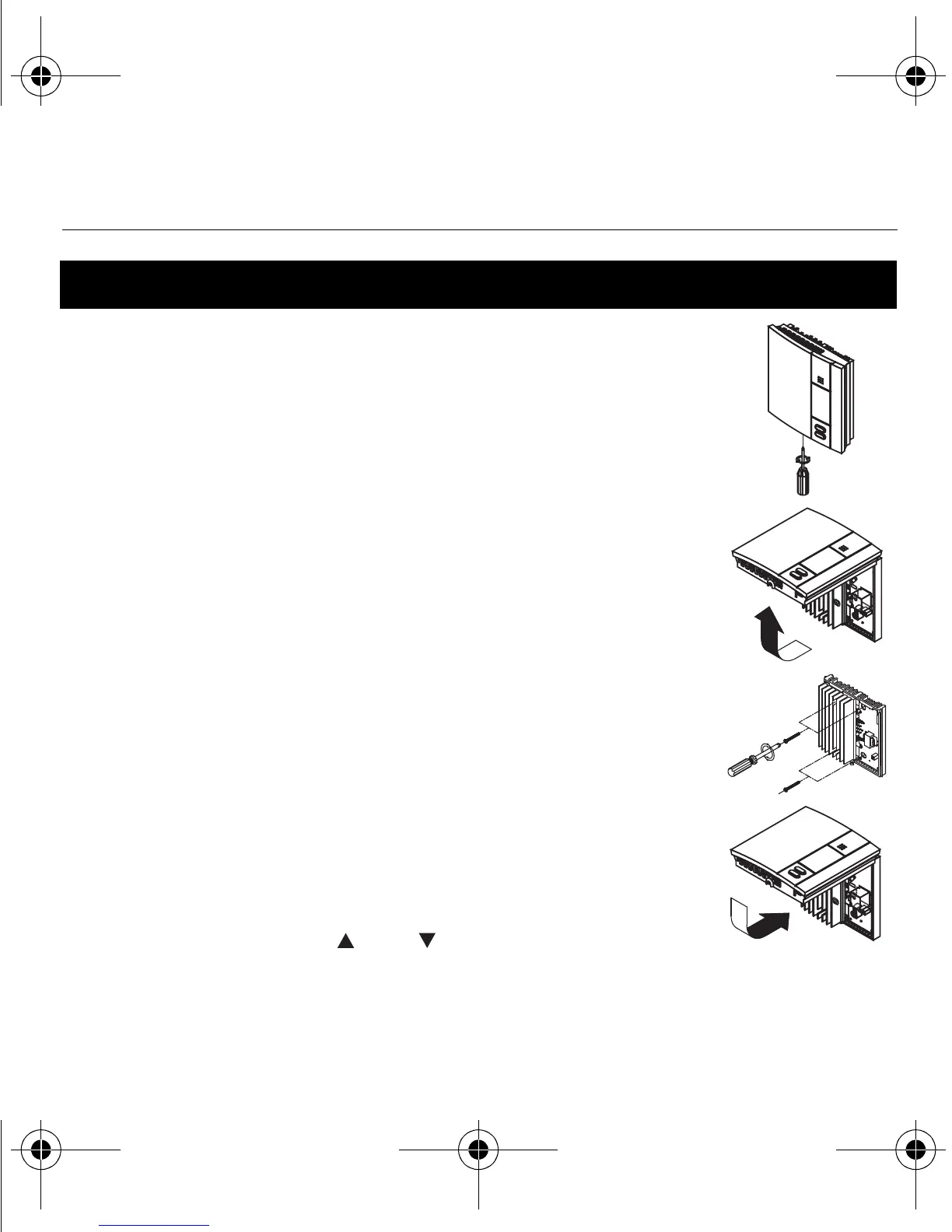

1) Loosen the screw and remove the faceplate of
the thermostat from its wallplate.
(The screw
remains captive on the wallplate.)
2) Make the connections using solderless
connectors for copper wires. The thermostat
wires are non-polarized; this means either wire
can be connected to either terminal.
3) Install the wallplate to the electrical box.
4) Set the configuration switches on the back of the
thermostat’s faceplate (see page 6).
5) Install the faceplate of the thermostat back on the
wallplate and tighten the screw.
6) If there is a protective film or sticker on the
thermostat’s screen, peel it off.
7) Apply power to the thermostat. Verify the
installation by checking that the heater can be
turned On and Off by raising and lowering the
setpoint using the and buttons.
Mounting the thermostat
