Step 2: Make the connections
After the wall plate is mounted, the connections shall be made. The ATEO2 only
allows connection in low impedance (8 Ohm) mode and therefore two terminals are

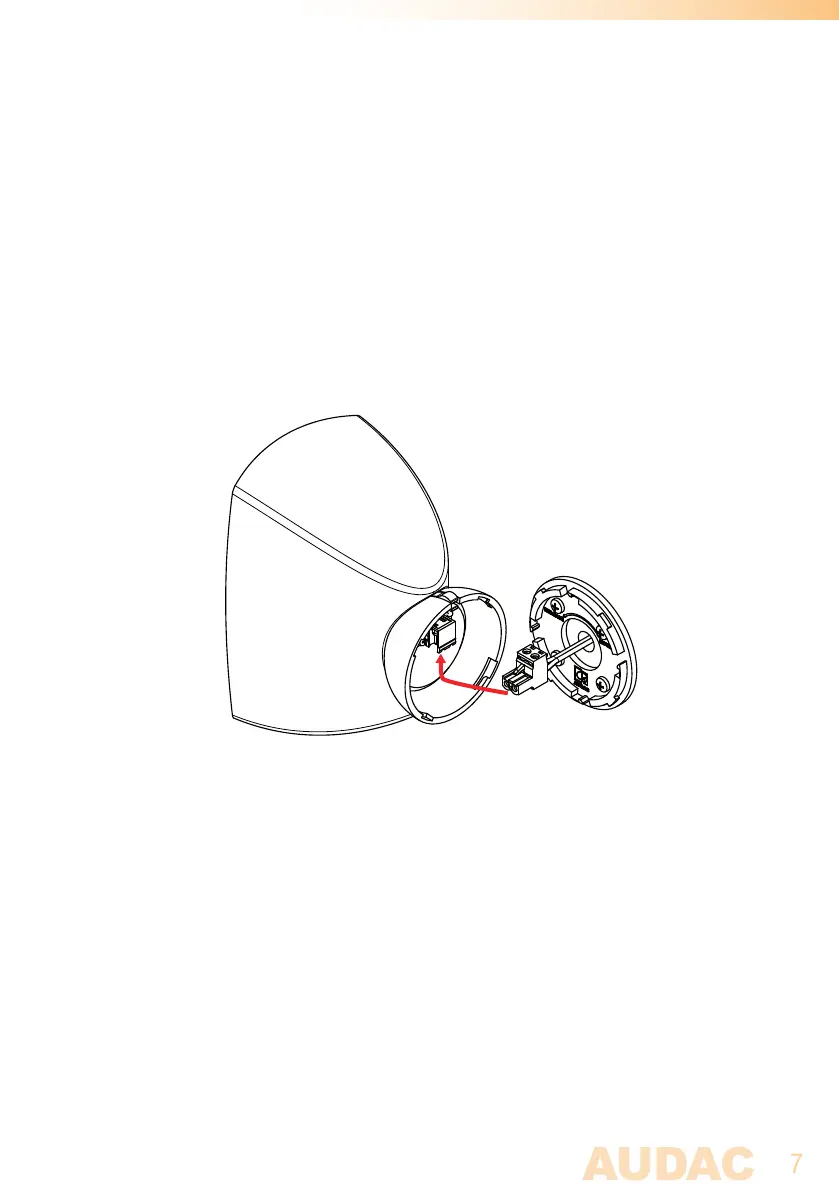

provided. The included 2-pin terminal block connector should be assembled to the
wires coming from the amplifier which are fed through the hole in the center of the
wall plate.
The correct polarity is marked on the connector. Make sure the polarity is always
correct throughout the entire system.
Mind the polarity markings when wiring the loudspeaker cables.
