9

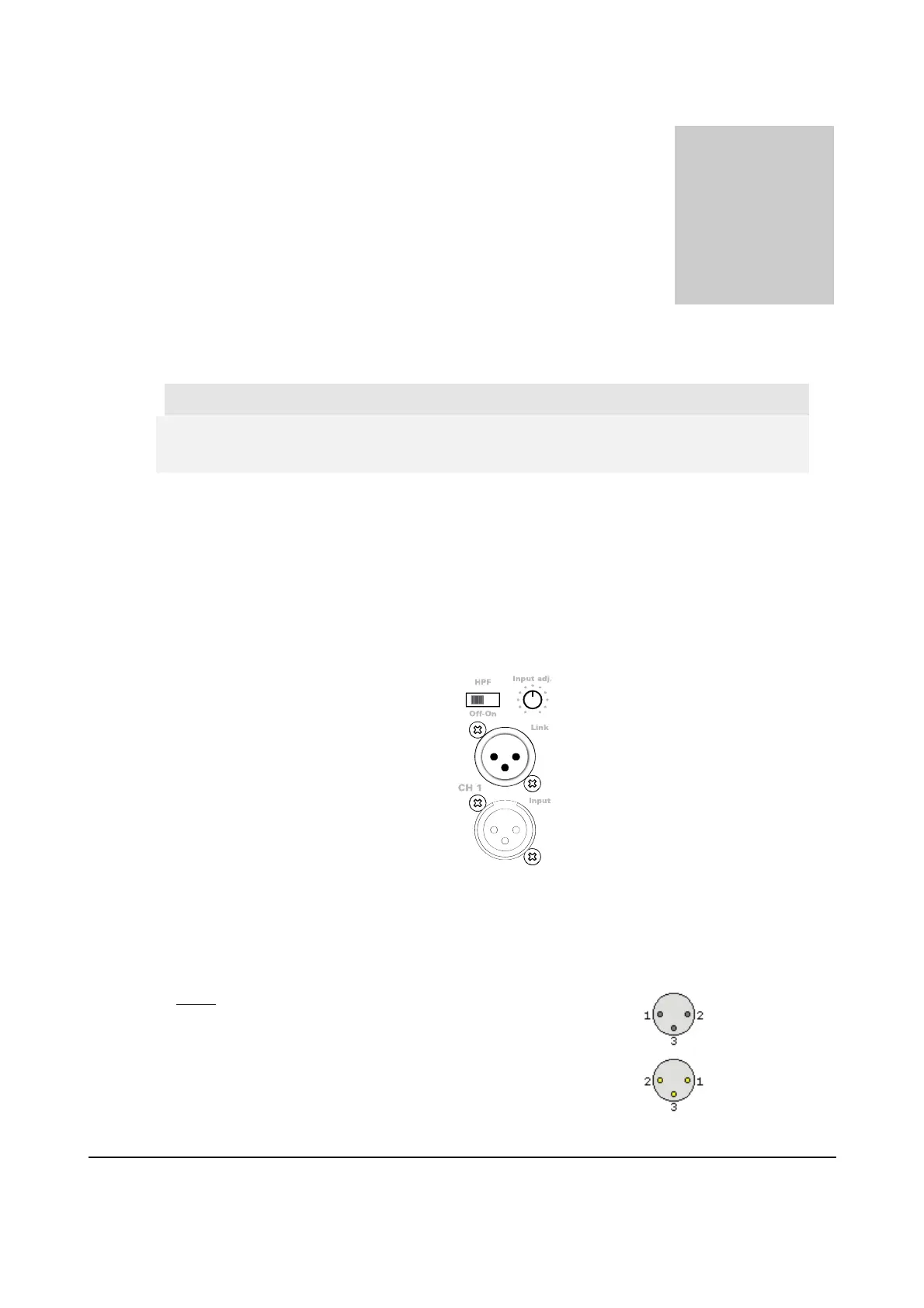

Connecting the Amplifier
Note
When connecting the amplifier, make sure the power button is switched OFF.
Input connections
The input connections of the amplifier are performed using balanced XLR connectors. Every
channel has an XLR input connector and a XLR link output connector.
The input signal from the signal source, pre-amplifier or mixer should be connected to the XLR
input connections. And by means of the XLR link output connectors, the signal can be linked
through to multiple amplifiers.
Connection standards
The in- and output connections of AUDAC audio equipment are performed corresponding to
international wiring standards for professional audio equipment.
XLR:
1 = ground / shield
2 = +sig
3 = -sig
XLR female:
XLR male:
Chapte
3
