Overview front and rear panel

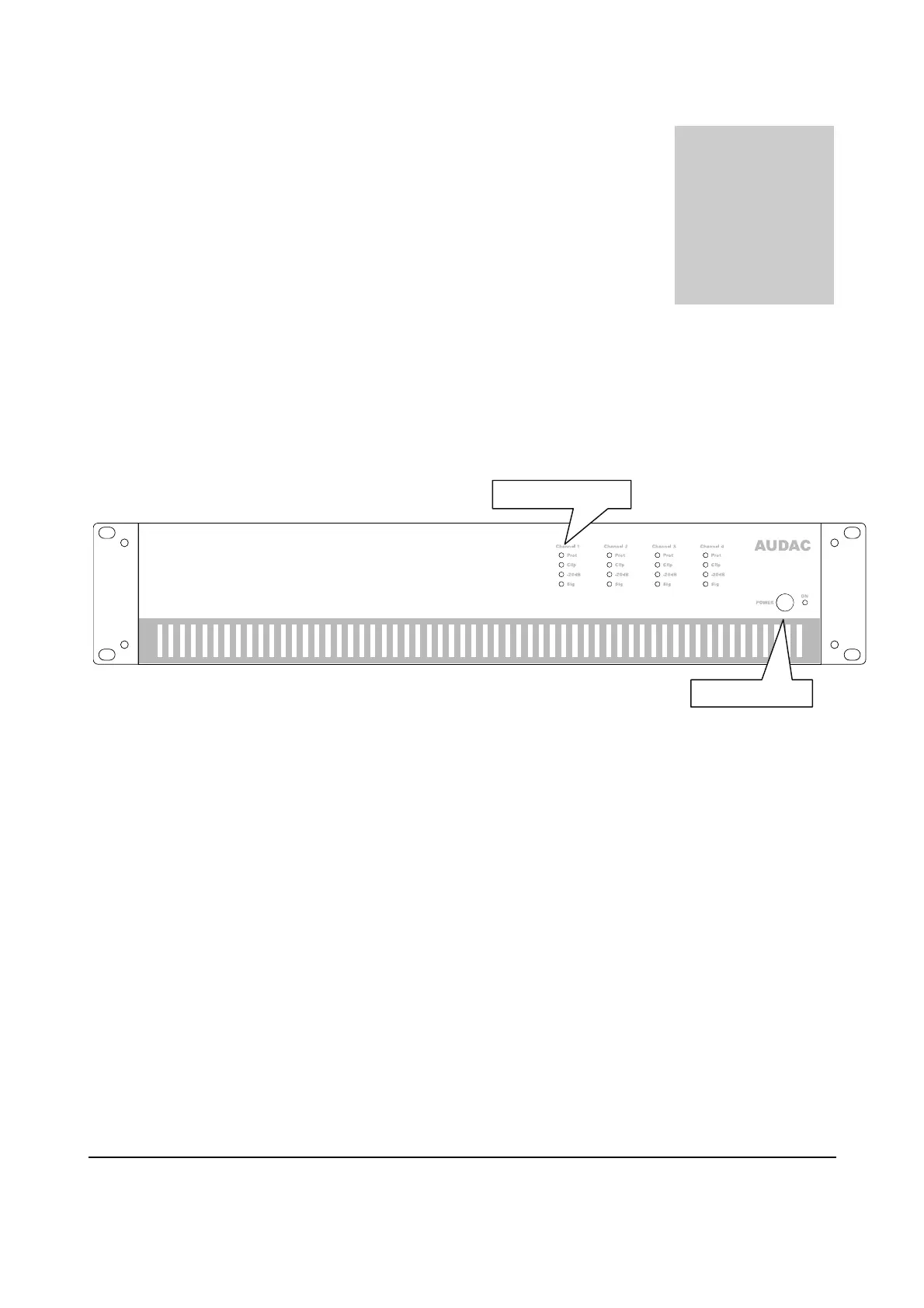

Front panel overview
CAP412
Description
1. Power switch:
By means of the power switch, the amplifier can be turned ON and OFF. When the amplifier is
switched on, the blue LED located next to the power button will illuminate.
2. Indicator LED’s:
These four LED’s indicate the operation of the amplifier. The green Signal LED illuminates
whenever a signal is present, while the -20dB LED illuminates when the input signal exceeds the -
20 dBu level. The Clip LED illuminates when the corresponding channel is working at maximum
level. To ensure the best signal-to-noise ratio, the Clip LED may only illuminate at peak levels.
When the Clip LED illuminates frequently, the amplifier will be overloaded, a distorted “Clipping”
sound will be available on the output. The Protection LED will illuminate when overheating
occurs, or any other fault is detected. When the protection LED is illuminated, no signal will be
available on the outputs. The protection LED’s will also illuminate for a few seconds when
powering up the amplifier, and when the amplifier is switched off they will slowly fade out.
Chapte
2
1. Power switch
2. Indicator LED’s
