AUDAC CAP412 User Manual

10
Output connections
The loudspeaker output connections are performed using Euro Terminal Blocks, and provide the
possibility for connecting low impedance (4 Ohm) loudspeakers as well as High impedance (100V
/ 70V) loudspeakers.
The table below shows the impedance and output voltage for each power tap.
CAP412 4Ω / 22V 41Ω / 70V 83Ω / 100V
When connecting the loudspeakers, always maintain proper polarity on the output connectors.
Connect the COM terminal to the negative (-) speaker lead and connect the other suitable terminal
to the positive (+) speaker lead.
Low impedance applications:

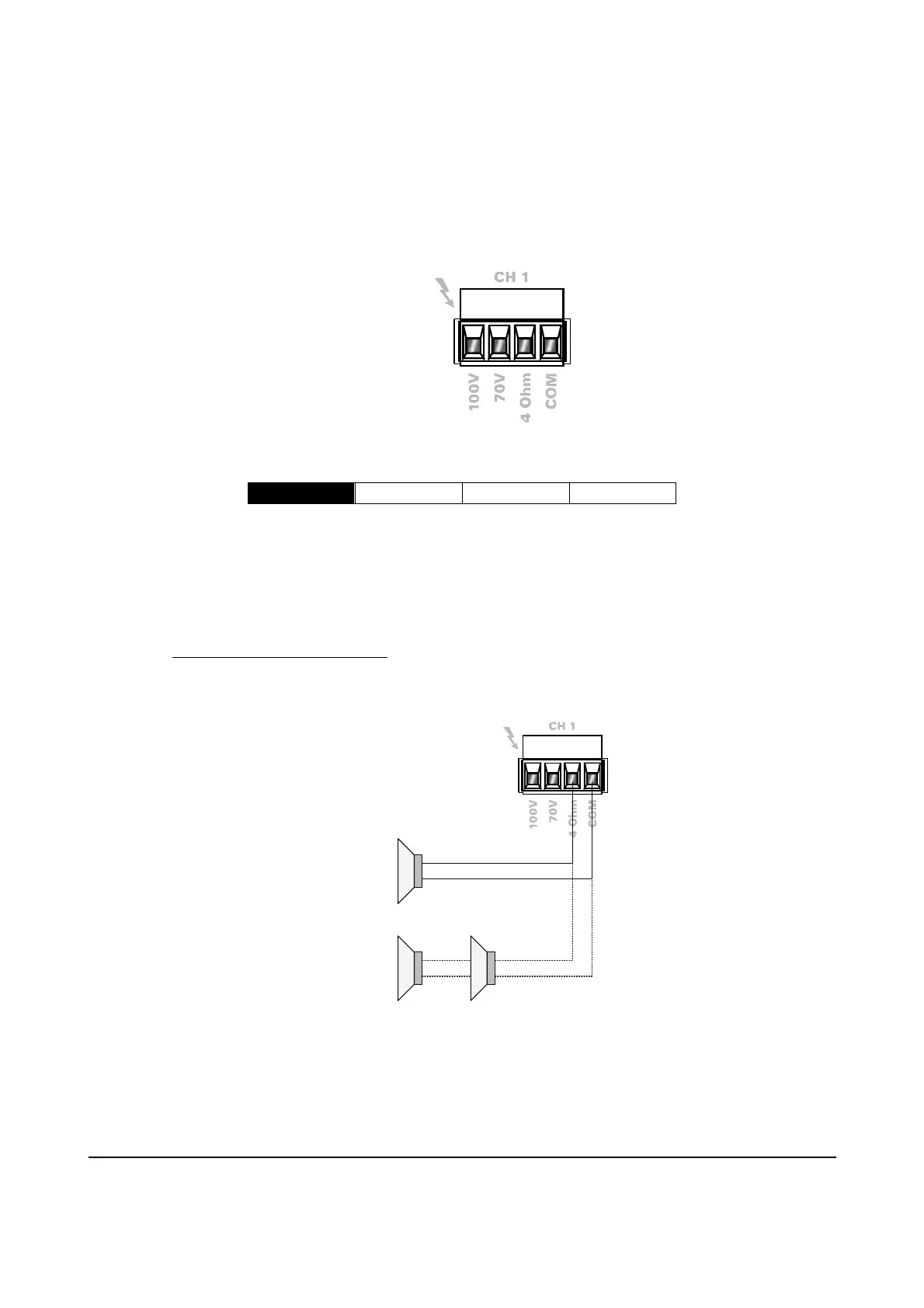

When using the CAP412 amplifier in low impedance applications, the loudspeakers should be
connected between the “COM” and “4 Ohm” connection terminals.
+
-
+
-
+
-
4 Ω
8 Ω 8 Ω
