Constant voltage applications:

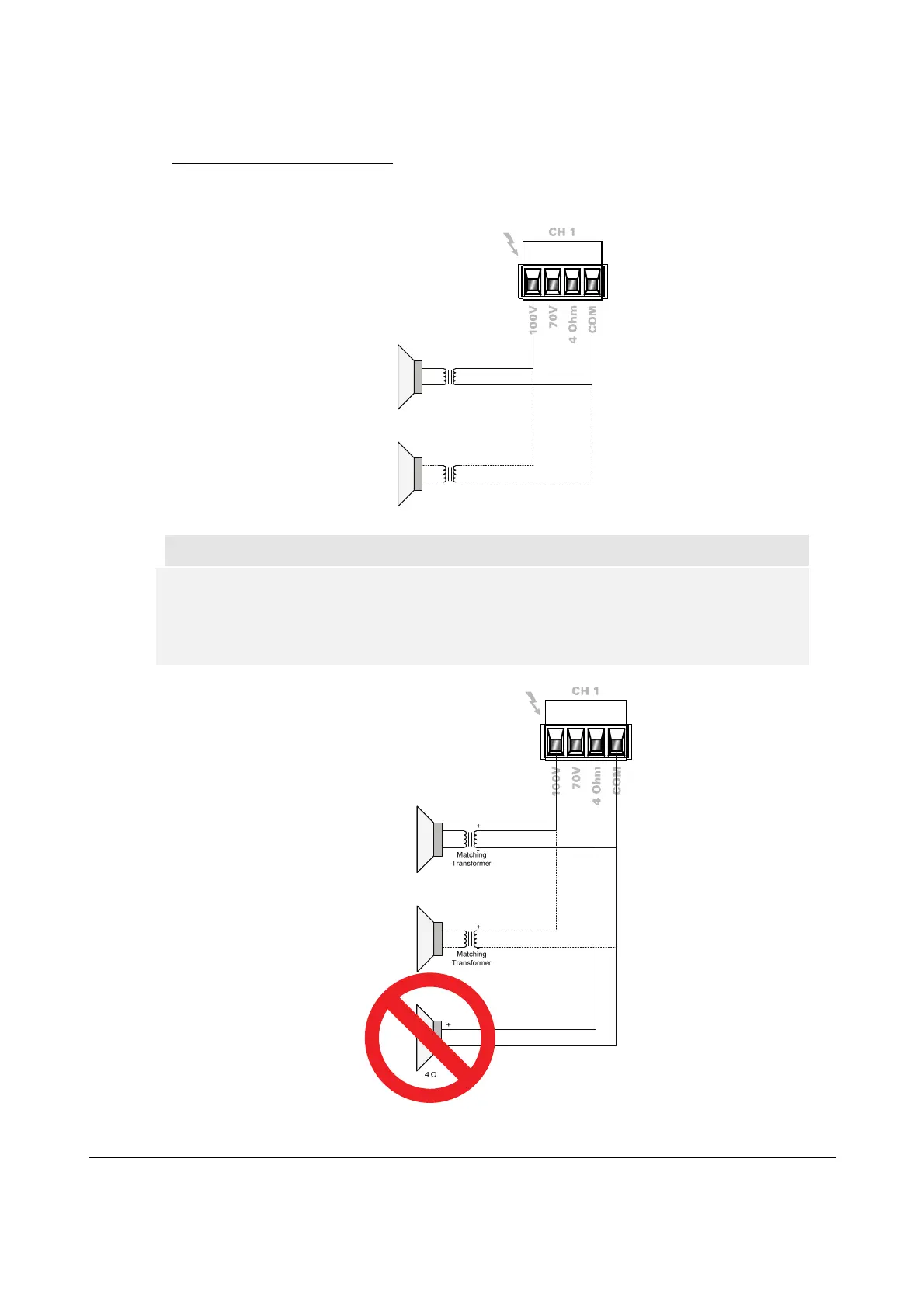

When using the CAP412 amplifier in constant voltage applications, the loudspeakers should be
connected between the “COM” and “100V or “70V” connection terminals.
-
-
Matching
Transformer
Matching
Transformer
+
+
Attention
Make sure the loudspeakers are always connected on Low impedance outputs OR on
Constant voltage outputs, but NEVER use the Low impedance outputs and Constant
voltage outputs of the same channel at the same time.
