2) The PCB of the DW5066 will be visible. Each of both connectors (RCA or XLR) will have a wire
connected to the PCB Board. Depending on which connector shall be used as an audio output, the
corresponding wire shall be disconnected. The other connector simply stays connected.

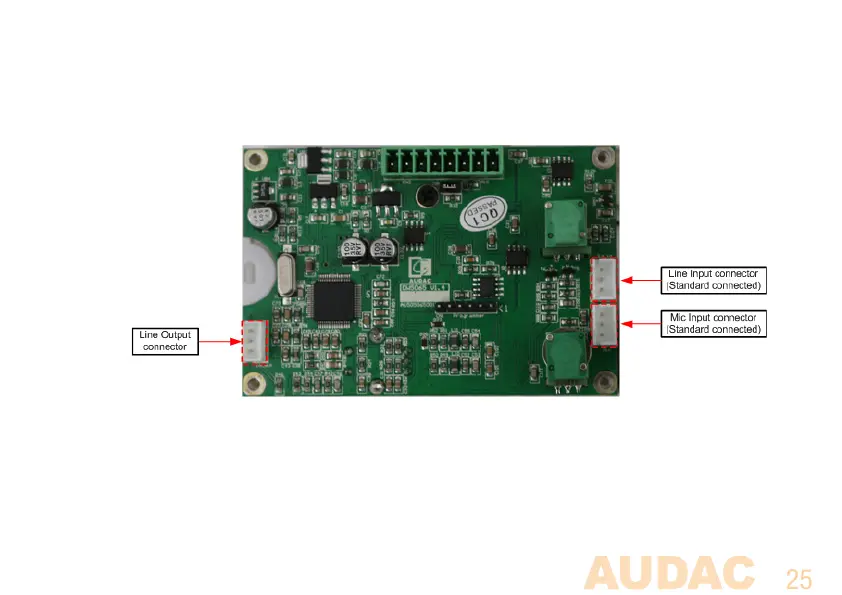

DW5066 Internal PCB
3) After the wire for the corresponding connector has been unplugged, it shall be plugged into the
Line Output connector on the left side of the PCB.
