4) The connector which is connected to the Line Output connector now will work as a local line
audio output.
5) After the modification of the internal connections has been made, combine the back cover
again with the front part of the wall panel and tighten the four screws to make it complete again.
6) Connect the wall panel to the system by using twisted pair CAT6 (or better) cable as described
before in this instruction manual. The configuration for which signal should be made available on
this output shall be configured on the user interface of the system controller.

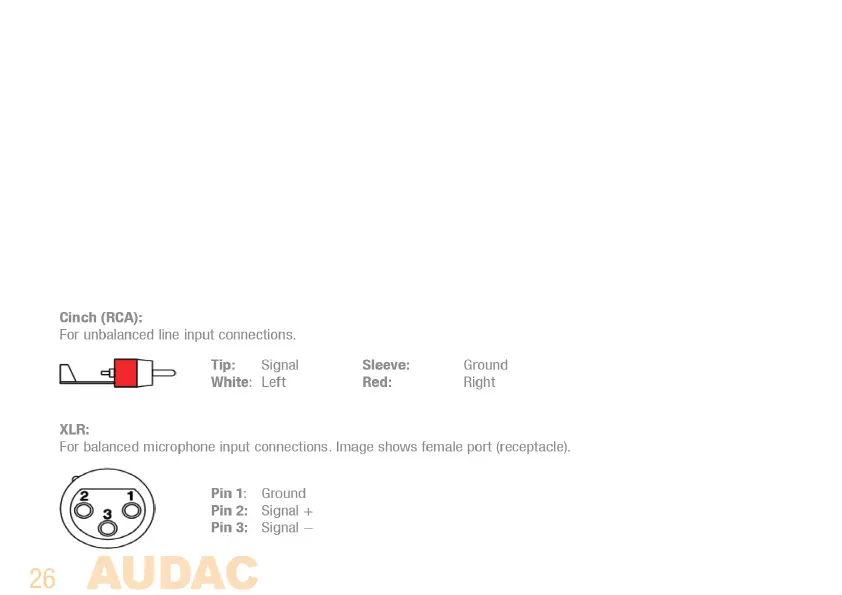

The pin configuration is as following:
