Chapter 1
Connections and connectors

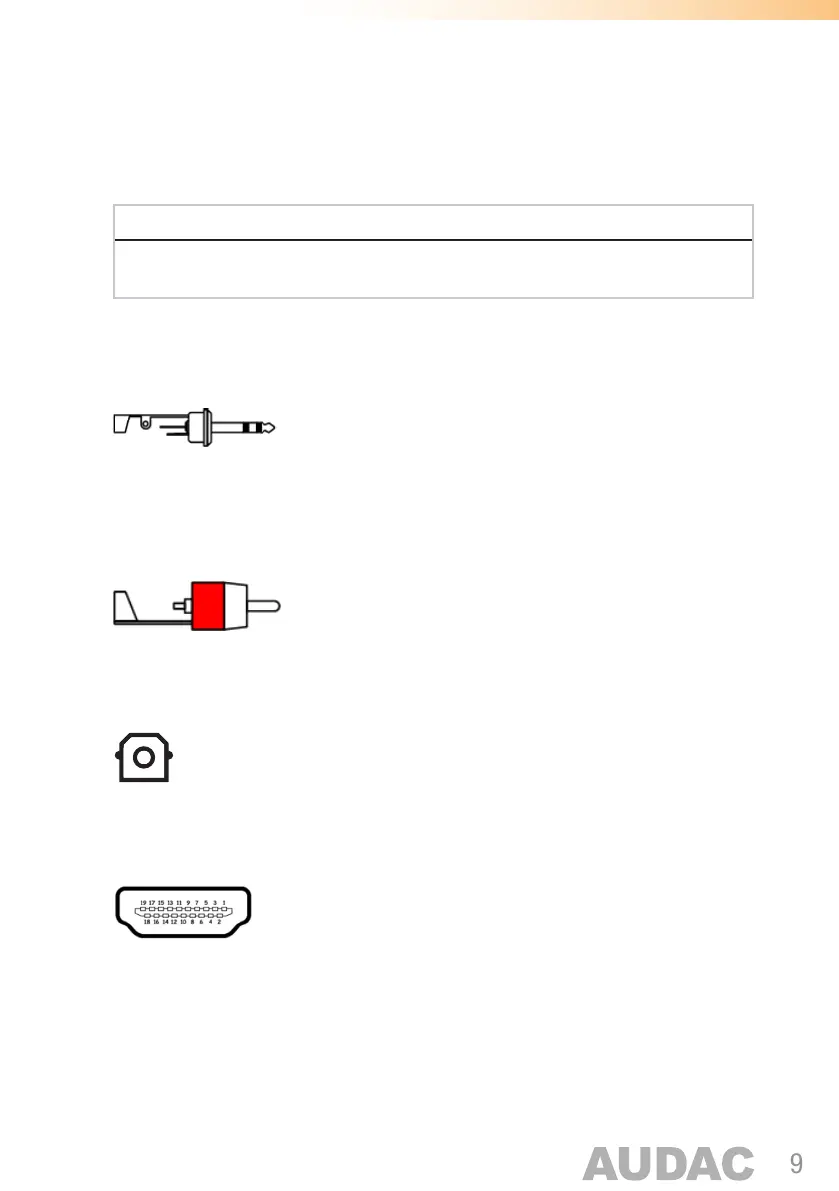

CONNECTION STANDARDS
The in- and output connections for AUDAC audio equipment are performed
corresponding to international wiring standards for professional audio equipment.
3.5 mm Jack (AUX):
For unbalanced stereo line level input connections
Tip: Left
Ring: Right
Sleeve: Ground
RCA (COAXIAL):
For coaxial SP/DIF digital input connections
Tip: Signal
Sleeve: Ground
TOSLINK (OPTICAL)
For optical SP/DIF digital input connections
HDMI ARC
For HDMI (ARC) input connections
HDMI Type A (19-pin)
Pinout: According HDMI specification
