AUDAC POW2 - Amplifier Channel Layout and Core Placement

4
Step 3:

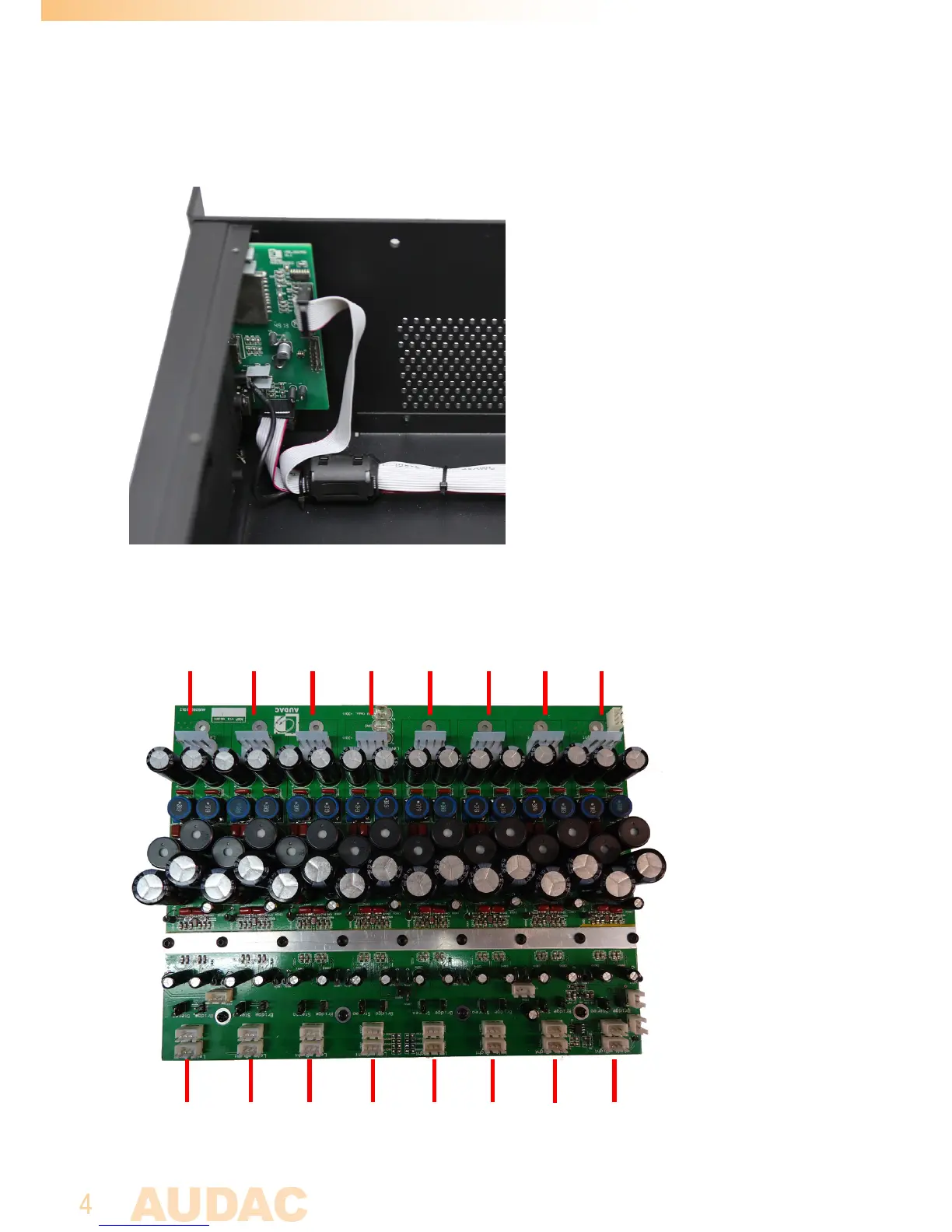

For M2: Place one of the supplied ferrite cores around the flatcables coming from the
USB and SD/MMC board on the front panel of the device.
Step 4:
Amplifier channel layout
OUT
IN
7 8654321
1 2 3 4 5 6 7 8
