Master Volume
Control
Unbalanced line input
Balanced microphone
input
Push-lock gain
control potentiometer
with clipping LED
Chapter 1
Overview front panel

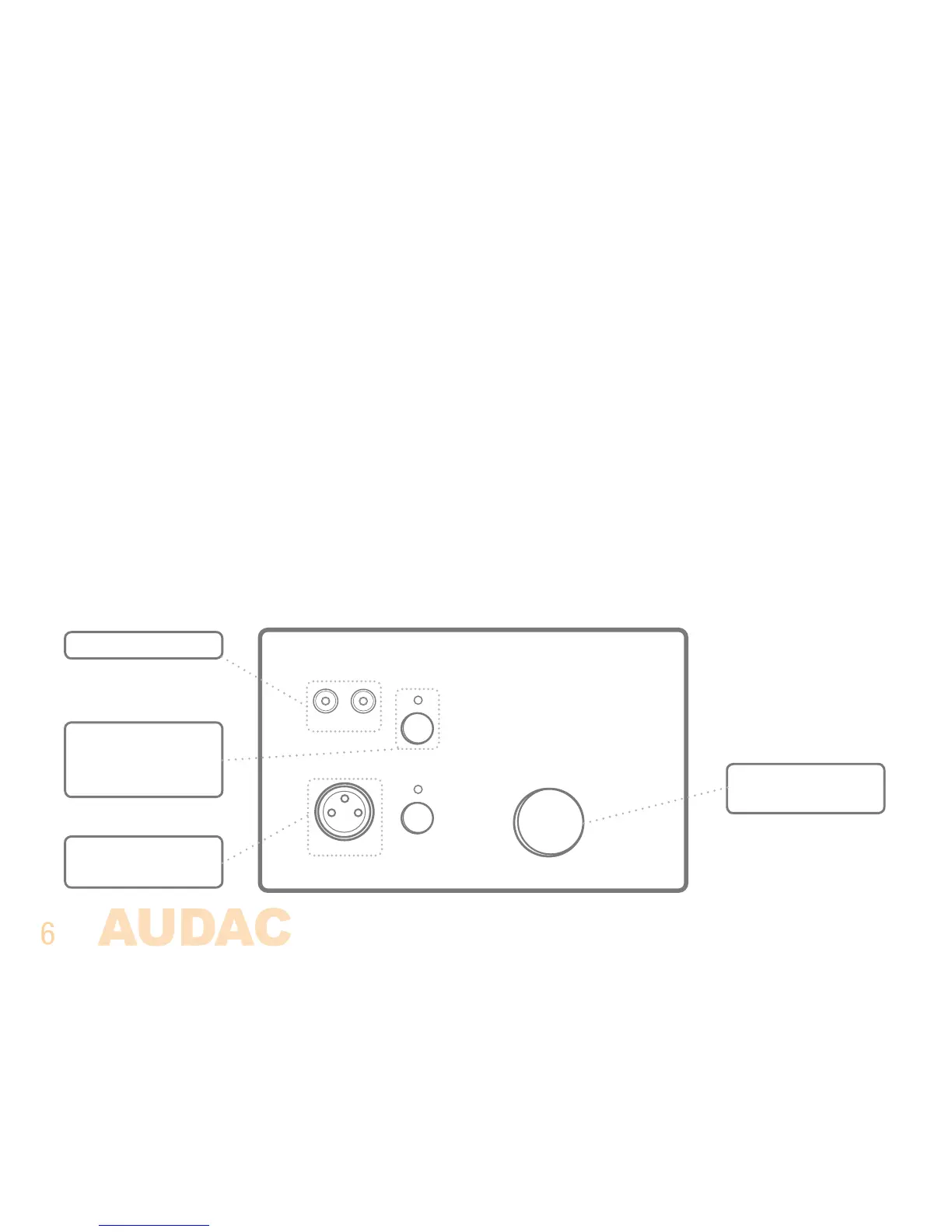

The front panel of the WP523 contains an unbalanced line input connected by RCA connectors and
a balanced microphone input connected by a XLR connector. Each input is accomodated with a
push-lock gain control potentiometer whereby both inputs can be mixed and a Clip indicator LED.
The overall volume can be controlled by means of the big rotatable dial.
AUDAC
LINE IN
MIC IN
